Front axle component layout
- Make
- Land Rover
- Model
- Discovery II (UK)
- Section
- Description and operation › Front axle component layout
Front axleFront axle component layout
FRONT AXLEDESCRIPTION AND OPERATION
Front axle component layout

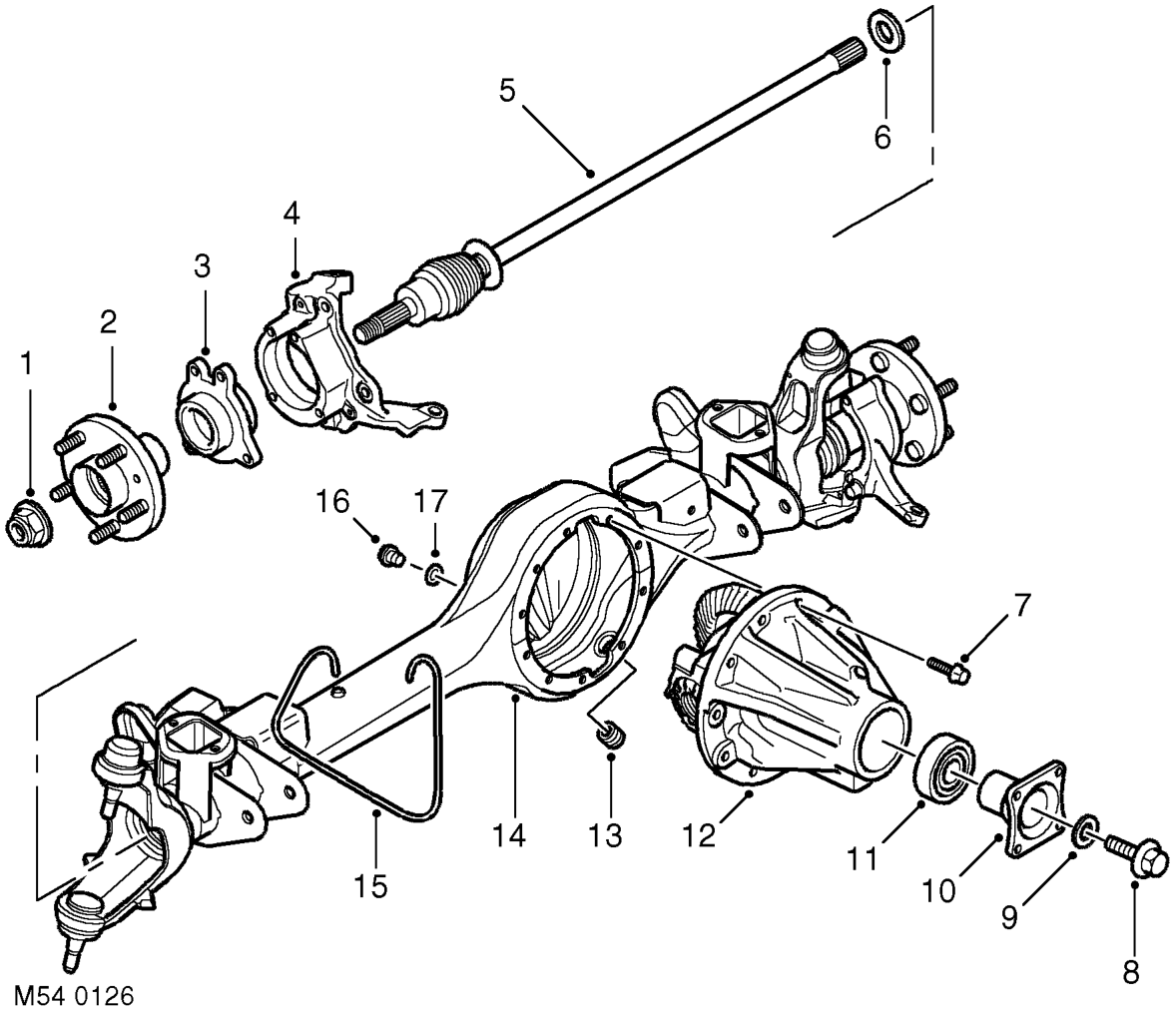

1 Stake nut 2 Hub flange 3 Hub bearing 4 Steering knuckle 5 Drive shaft 6 Oil seal 7 Bolt 8 Bolt 9 Washer
10 Drive flange 11 Oil seal 12 Differential unit 13 Drain plug 14 Axle casing 15 Breather tube 16 Oil level plug 17 'O' ring
