Heating and ventilation component layout
- Make
- Land Rover
- Model
- Discovery II (UK)
- Section
- Description and operation › Heating and ventilation component layout
Heating and ventilationHeating and ventilation component layout
HEATING AND VENTILATIONDESCRIPTION AND OPERATION
Heating and ventilation component layout
RH drive shown, LH drive similar

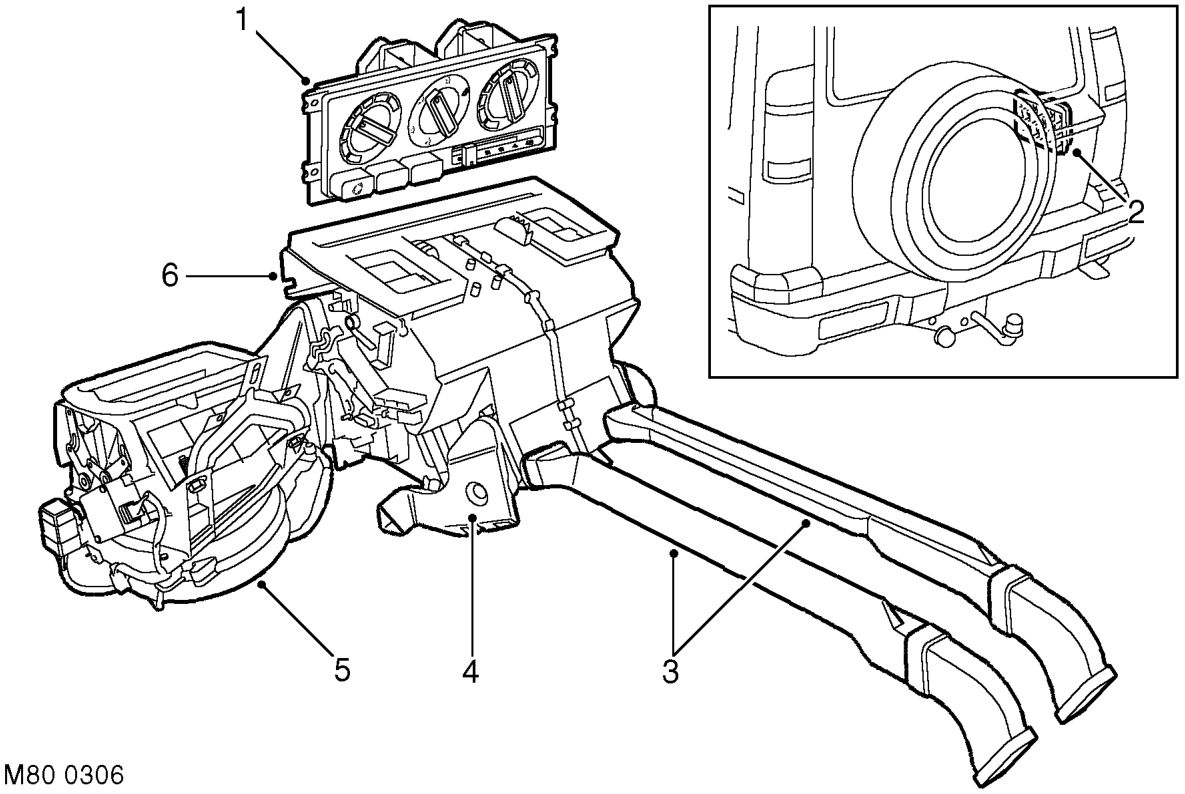

1 Control panel 2 Outlet vent 3 Rear footwell ducts 4 Front footwell duct 5 Air inlet duct 6 Heater assembly
