SRS component layout (Restraint systems)
- Make
- Land Rover
- Model
- Discovery II (UK)
- Section
- Description and operation › SRS component layout
Restraint systemsSRS component layout
RESTRAINT SYSTEMSDESCRIPTION AND OPERATION

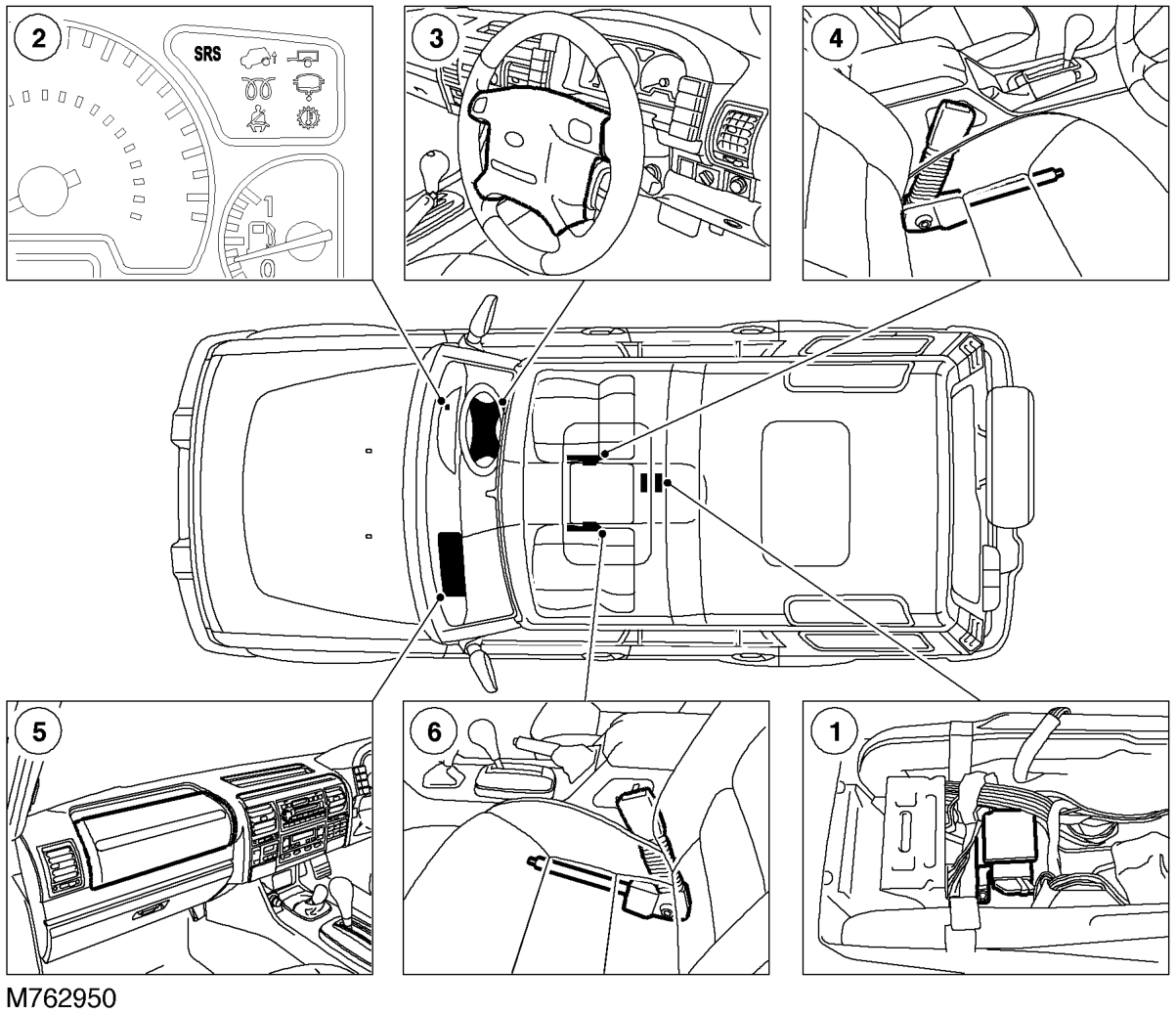

SRS component layout
RHD shown, LHD similar
1 DCU 2 SRS warning lamp 3 Driver airbag module 4 Driver seat belt pretensioner 5 Passenger airbag module 6 Passenger seat belt pretensioner
