Air conditioningA/C refrigerant system component layout

_{AIR CONDITIONING}_{DESCRIPTION AND OPERATION}

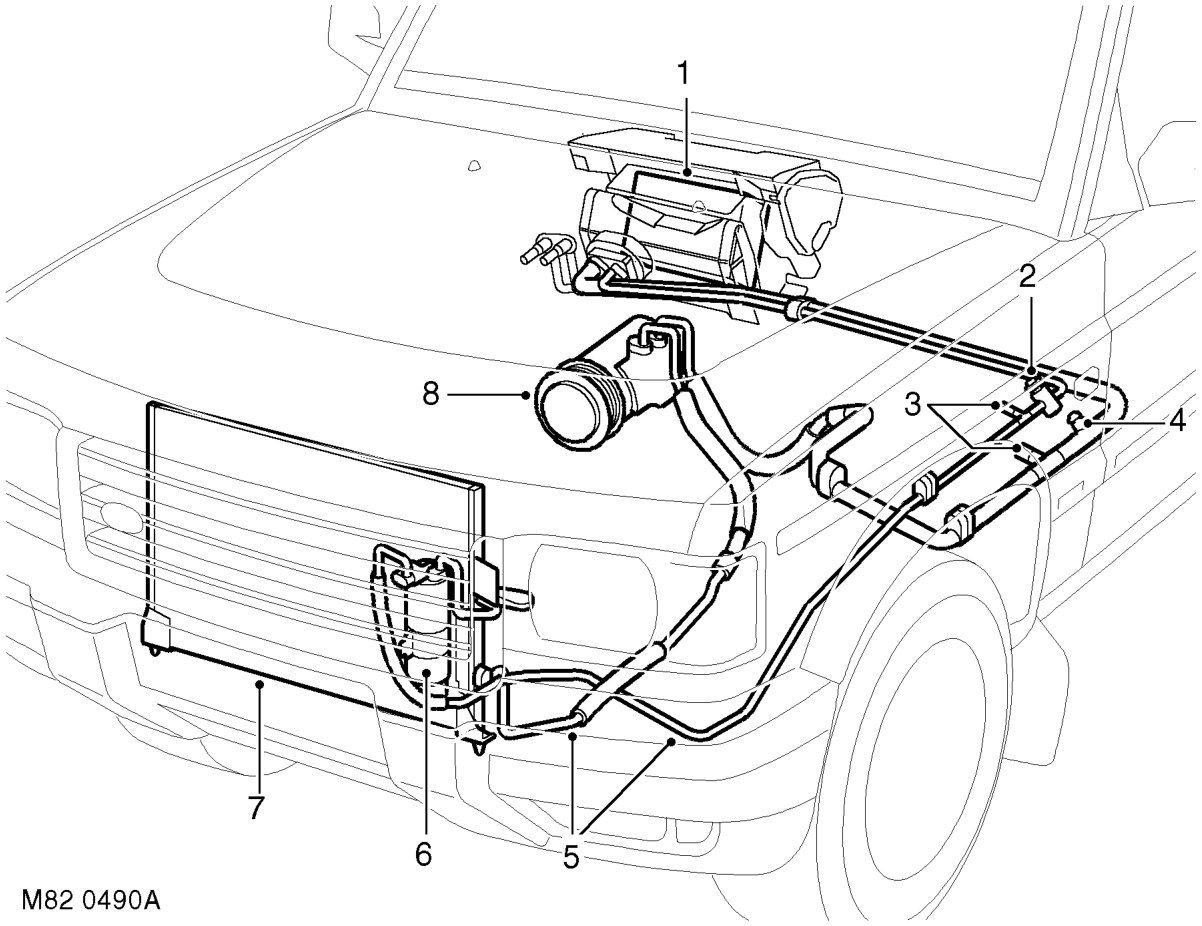

A/C refrigerant system component layout

Diesel installation shown, V8 similar

1 Evaporator and thermostatic expansion valve 2 High pressure servicing connection 3 To rear A/C system (where fitted) 4 Low pressure servicing connection 5 Refrigerant lines 6 Receiver drier 7 Condenser 8 Compressor
