Air conditioningA/C control system component layout

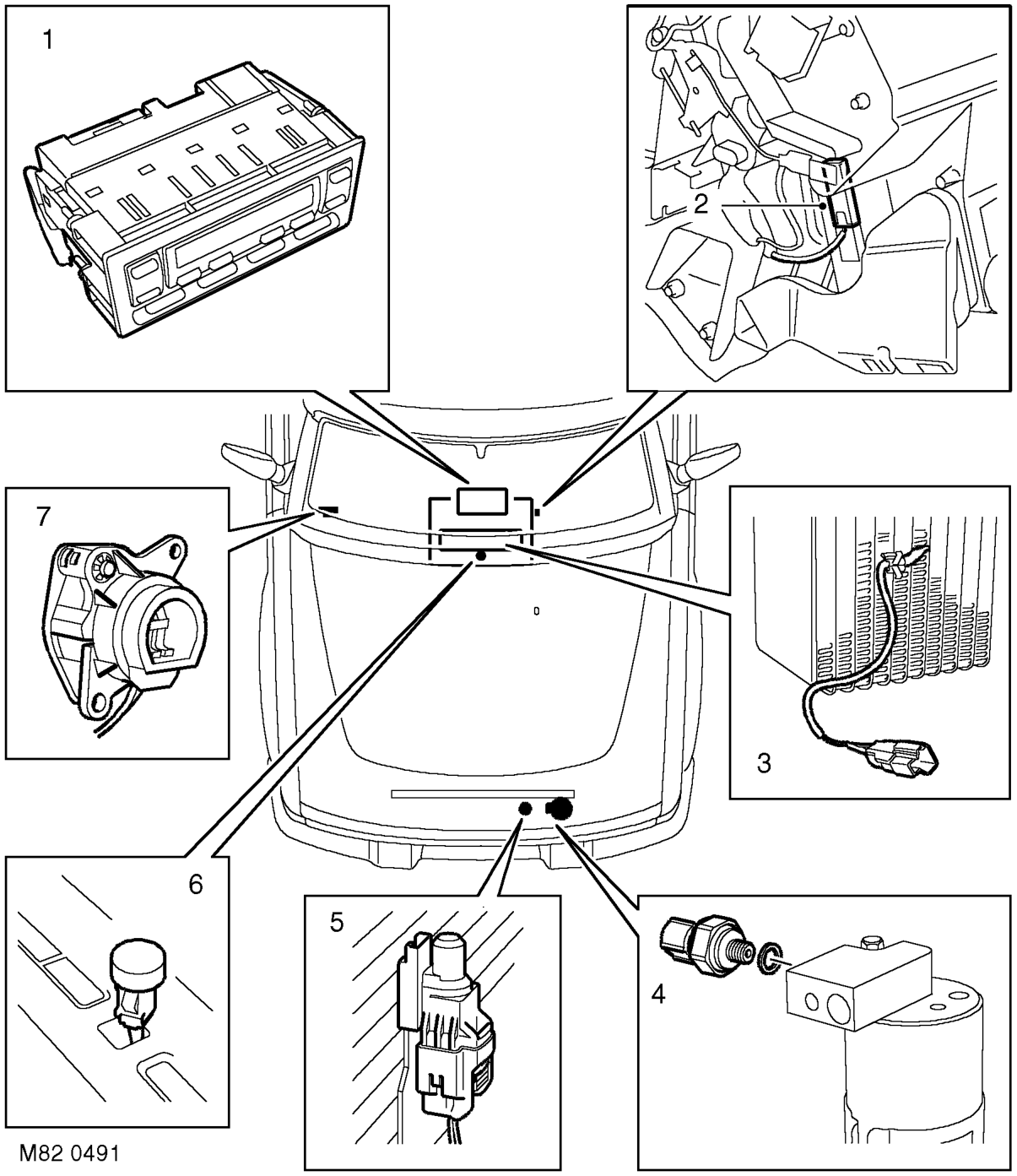

A/C control system component layout
RH drive shown, LH drive similar
1 Air temperature control ECU 2 Heater coolant temperature sensor 3 Evaporator temperature sensor 4 Dual pressure switch 5 Ambient temperature sensor 6 Sunlight sensor 7 In-car temperature sensor
