Description
The rear air conditioning system cools and recirculates air at the rear of the cabin. The system consists of refrigerant lines, a rear evaporator/blower assembly, a distribution system and a control panel.
Cooled air from the rear evaporator/blower assembly is supplied by the distribution system to vent outlets above each second and third row seat. The system is controlled by two switches on the control panel.
Refrigerant lines
Two refrigerant lines connect the rear evaporator/blower assembly to the front A/C refrigerant system. The lines are routed along the LH underside of the vehicle and secured to a connector block in the floor. A heat shield protects the lines where they pass above the rear silencer.
Rear evaporator/blower assembly

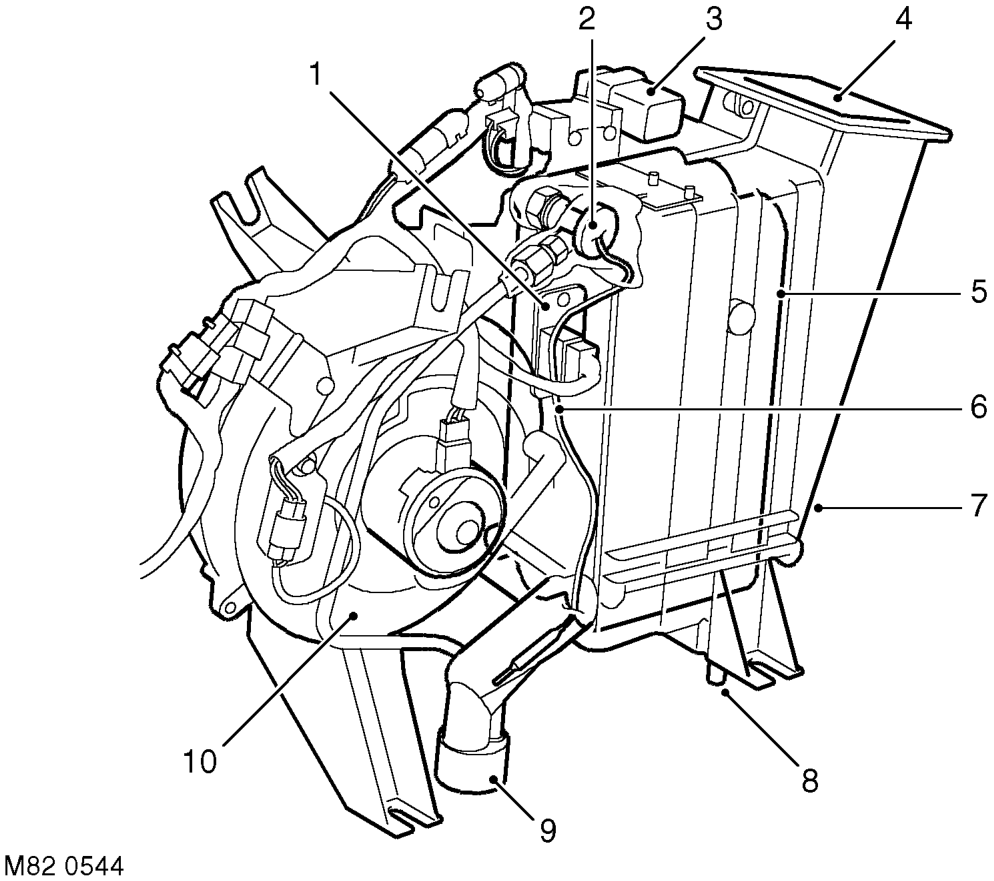

1 Resistor pack 2 Thermostatic expansion valve 3 Rear blower relay 4 Air outlet 5 Evaporator
6 Capillary tube 7 Housing 8 Condensate drain outlet 9 Refrigerant lines 10 Blower
