Instruments (Instrument pack): Description and operation

_{INSTRUMENTSDESCRIPTION AND OPERATION}

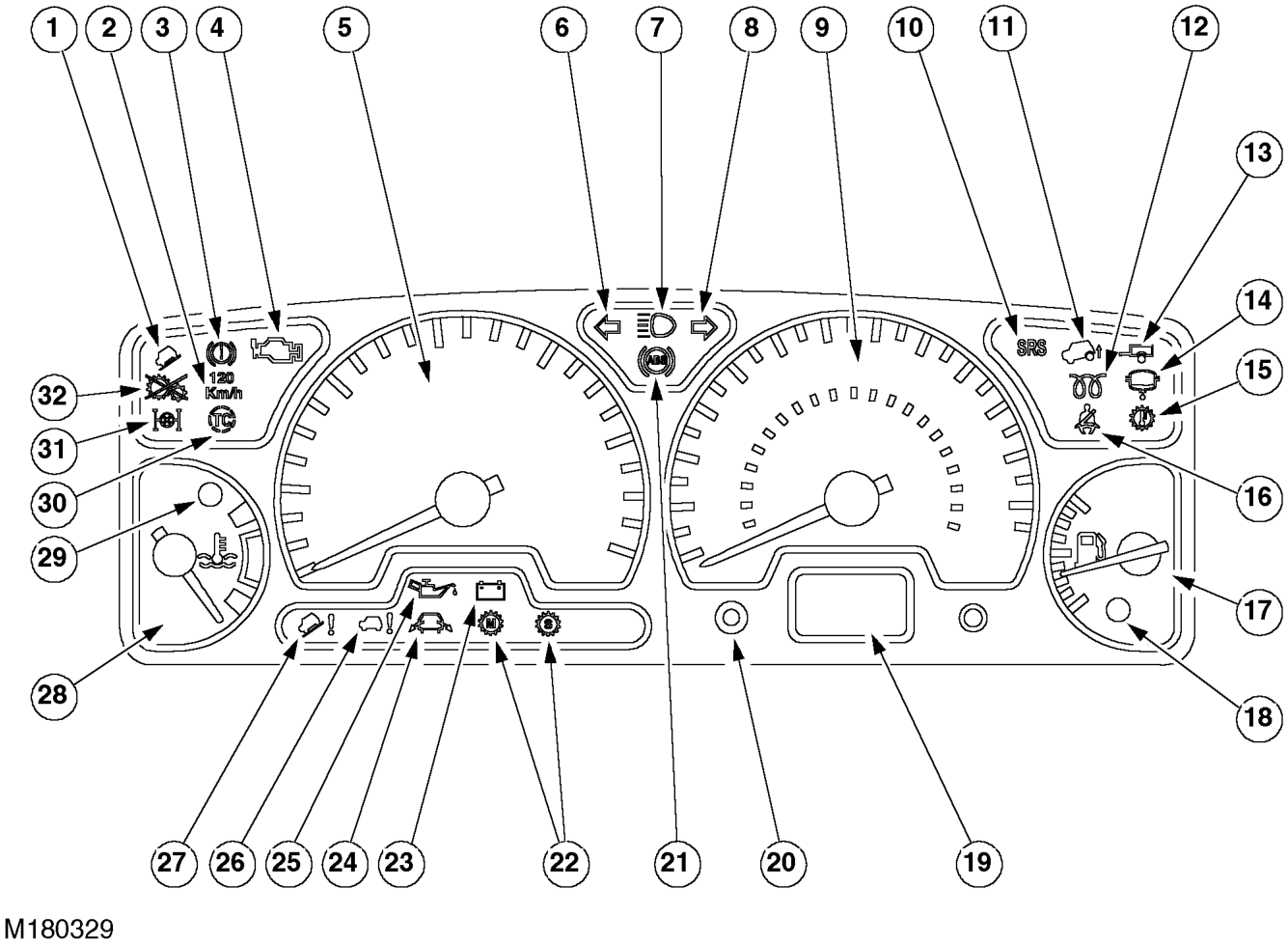

Instrument pack

1 Hill descent control information warning lamp 2 Overspeed warning lamp 3 Brake system warning lamp 4 Malfunction Indicator Lamp (MIL) 5 Tachometer 6 Direction indicator warning lamp 7 Main beam warning lamp 8 Direction indicator warning lamp 9 Speedometer 10 SRS warning lamp 11 Off road mode warning lamp 12 Glow plug warning lamp 13 Trailer warning lamp 14 Water in fuel filter warning lamp 15 Transmission high temperature warning lamp 16 Seat belt warning lamp

17 Fuel tank level gauge 18 Low fuel level warning lamp 19 LCD odometer/trip meter 20 Anti-theft status warning lamp 21 ABS warning lamp 22 Gearbox manual/sport mode warning lamp 23 Alternator charge warning lamp 24 ACE warning lamp 25 Oil pressure warning lamp 26 SLS warning lamp 27 Hill descent control warning lamp 28 Engine coolant temperature gauge 29 High coolant temperature warning lamp 30 Traction control warning lamp 31 Differential lock warning lamp 32 Transfer box neutral warning lamp
