InstrumentsInstrument block diagram

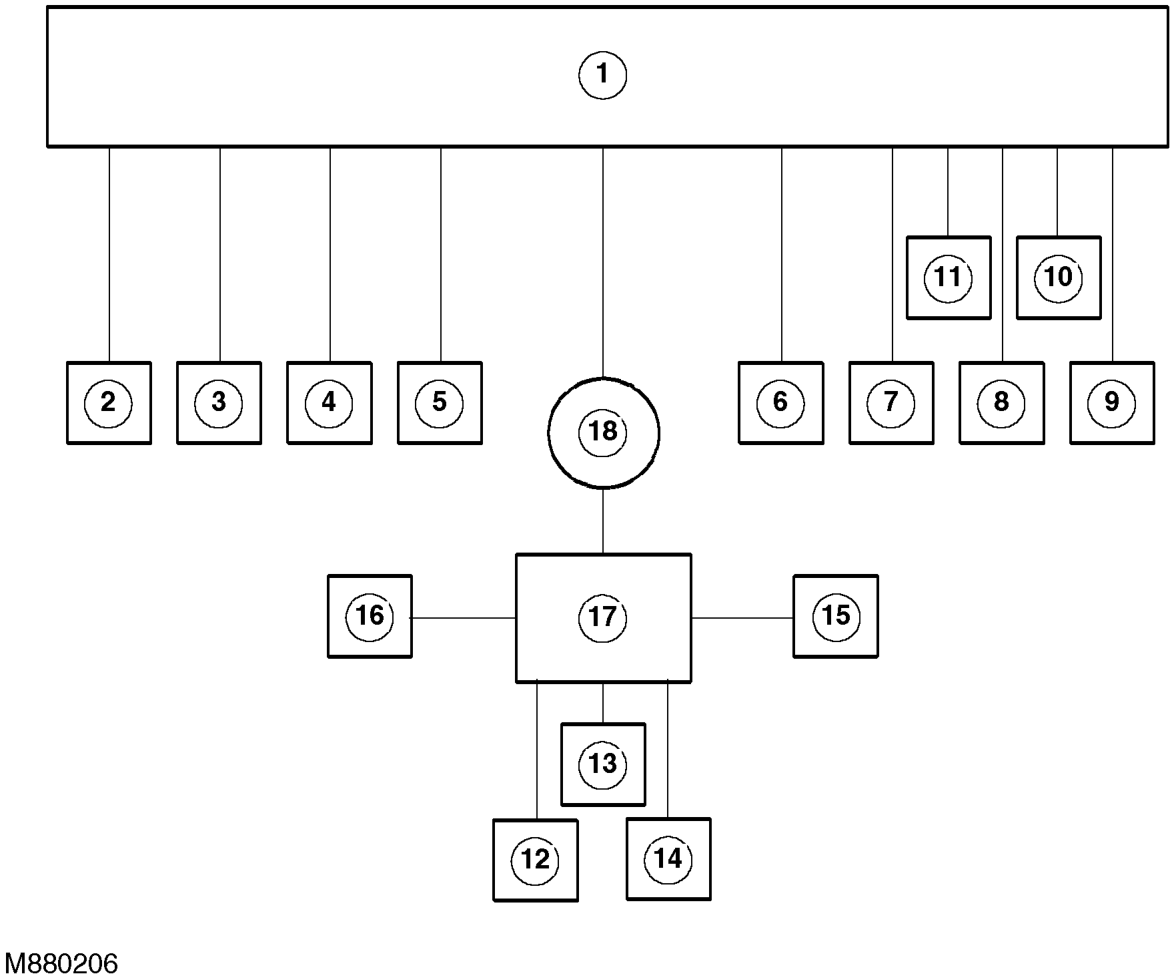

Instrument block diagram
1 Instrument pack 2 ECM 3 Brake fluid level switch 4 Parking brake switch 5 Oil pressure switch 6 Alternator 7 Fuel tank sender unit 8 Water in fuel filter sensor 9 Transmission temperature sensor 10 Differential lock switch - vehicles up to 03 model year or Differential lock switches - vehicles from 03 model year
11 Audible warning speaker 12 SRS DCU 13 SLABS ECU 14 BCU 15 ACE ECU 16 EAT ECU 17 Diagnostic connector 18 Serial communications link
