InstrumentsInstrument component location - Passenger compartment

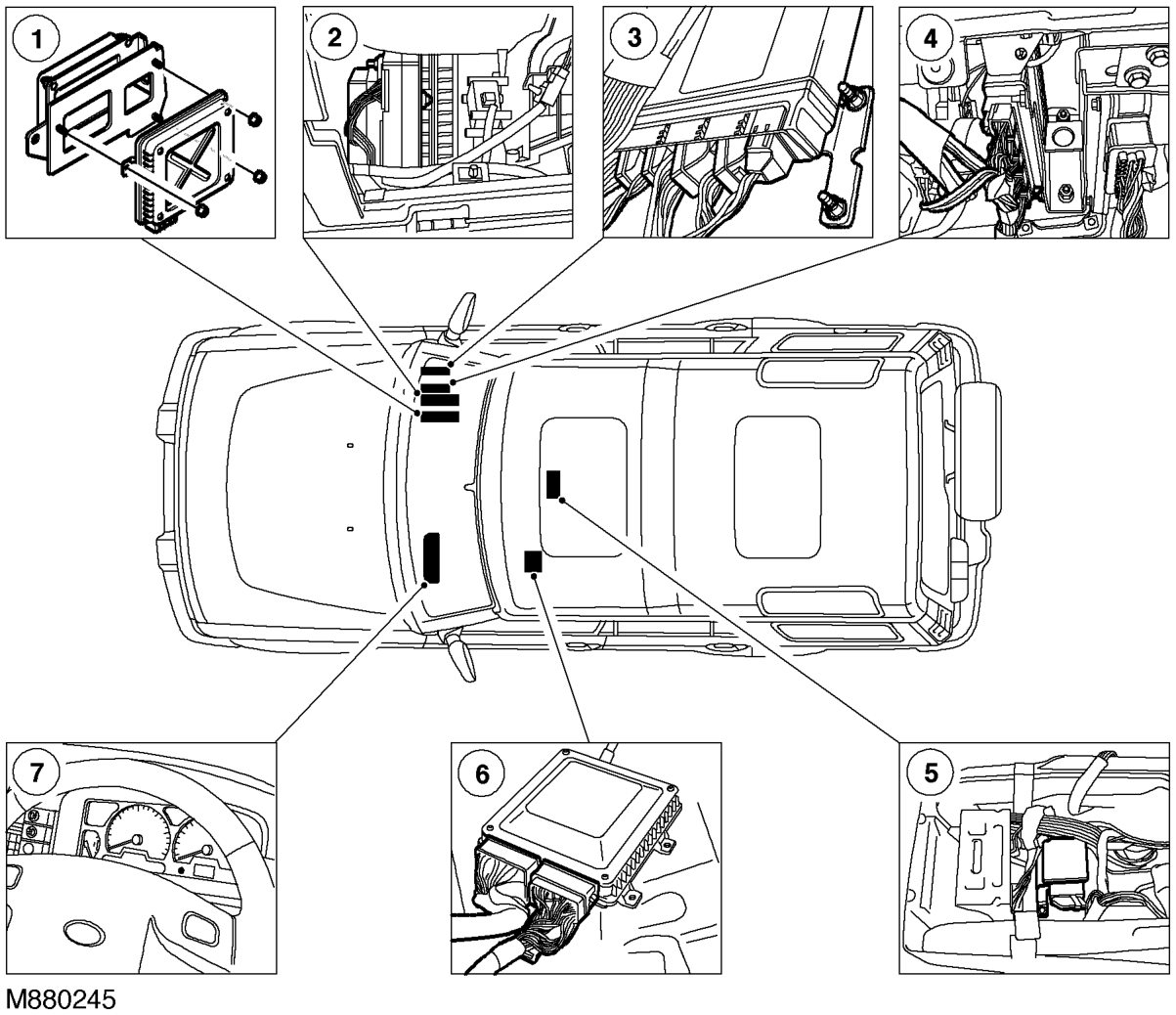

Instrument component location - Passenger compartment
LHD illustrated
1 ACE ECU 2 BCU 3 ECM (V8 models) 4 SLABS ECU 5 SRS DCU 6 EAT ECU 7 Instrument pack
