Instrument component location - Engine compartment / underneath vehicle (Instruments)
- Make
- Land Rover
- Model
- Discovery II (UK)
- Section
- Description and operation › Instrument component location - Engine compartment / underneath vehicle
InstrumentsInstrument component location - Engine compartment / underneath vehicle

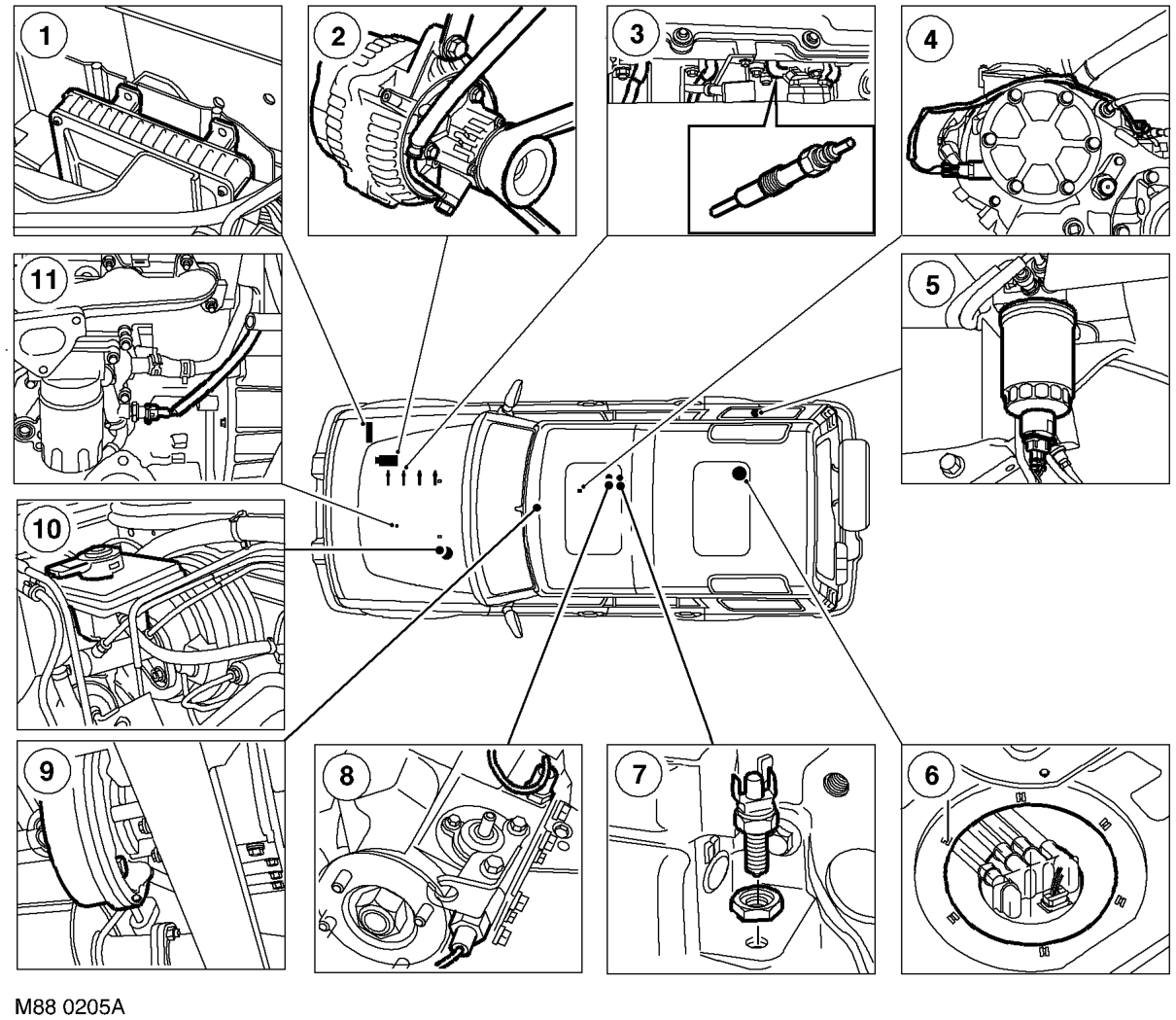

Instrument component location - Engine compartment / underneath vehicle
1 ECM (diesel models) 2 Alternator 3 Glow plugs 4 Transmission temperature sensor 5 Water in fuel filter sensor 6 Fuel tank sender unit 7 Differential lock switch – vehicles up to 03 model year
8 Differential lock switches – vehicles from 03 model year (where fitted) 9 Parking brake switch 10 Brake fluid level switch 11 Oil pressure switch
