Electric seat component location (Seats)

Make: Land Rover
Model: Discovery II (UK)
Section: Description and operation › Electric seat component location

‹ Prev Next › Electric seat block diagram

SeatsElectric seat component location

_SEATS_{DESCRIPTION AND OPERATION}

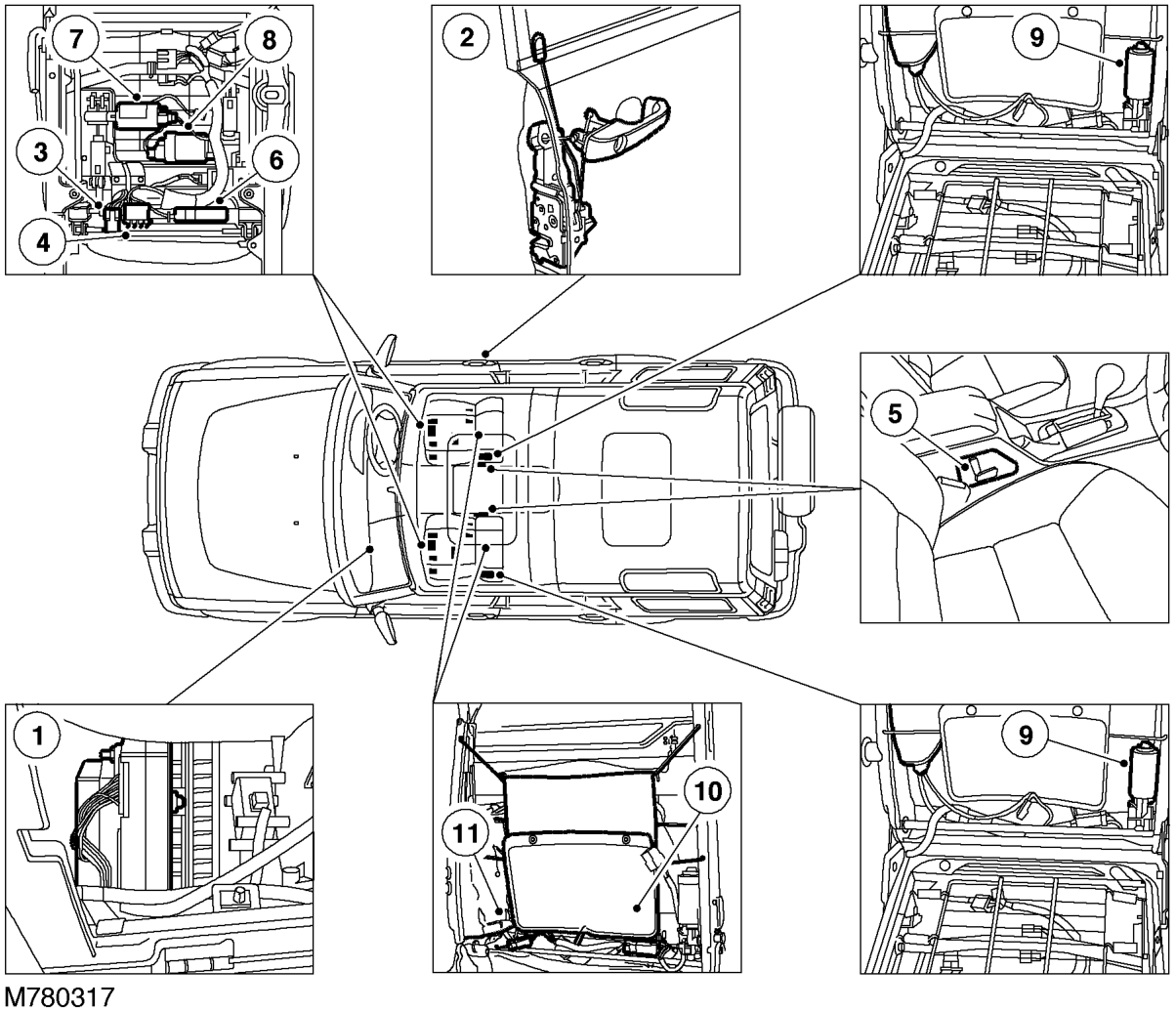

Electric seat component location

RHD shown, LHD similar

1 BCU 2 Drivers door switch 3 Power relay 4 Satellite fuse box 5 Switch pack 6 Fore/aft motor 7 Cushion front up/down motor 8 Cushion rear up/down motor 9 Squab fore/aft motor 10 Lumbar support bladder 11 Lumbar pump
