Seat switch pack (Seats)

Seat switch pack

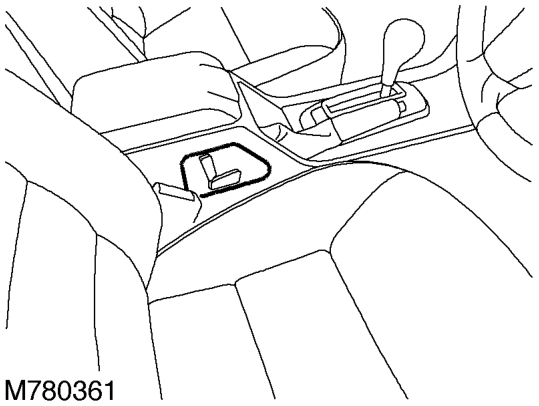

Each seat switch pack contains two switches representing the seat cushion and the seat squab. The switches provide the following adjustments: l Seat fore/ aft. l Cushion front up/ down. l Cushion rear up/ down. l Squab fore/ aft. l Lumbar inflate. l Lumbar deflate.

The voltage supply to the seat switch pack is from the 40A fuse in the satellite fuse box. A pair of switches controls the operation of each seat motor, the lumbar pump and the lumbar deflate relay.

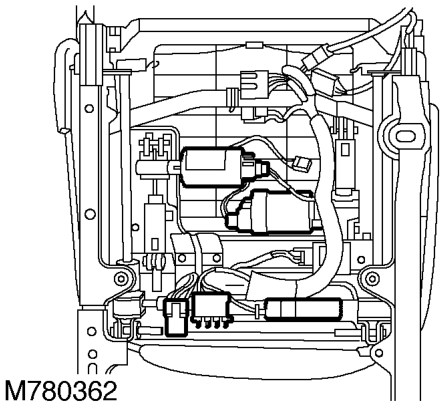

Seat fore/ aft motor

The seat fore/ aft motor is a permanent magnet motor coupled to a rack and pinion assembly. Should the motor seize or stick for 6 seconds or more, an internal thermal cut out switch will trip to remove voltage from the motor. Reset time for the switch is 35 seconds.
