Manifolds and exhaust systems - Td5Manifold component layout
MANIFOLDS AND EXHAUST SYSTEMS - Td5DESCRIPTION AND OPERATION

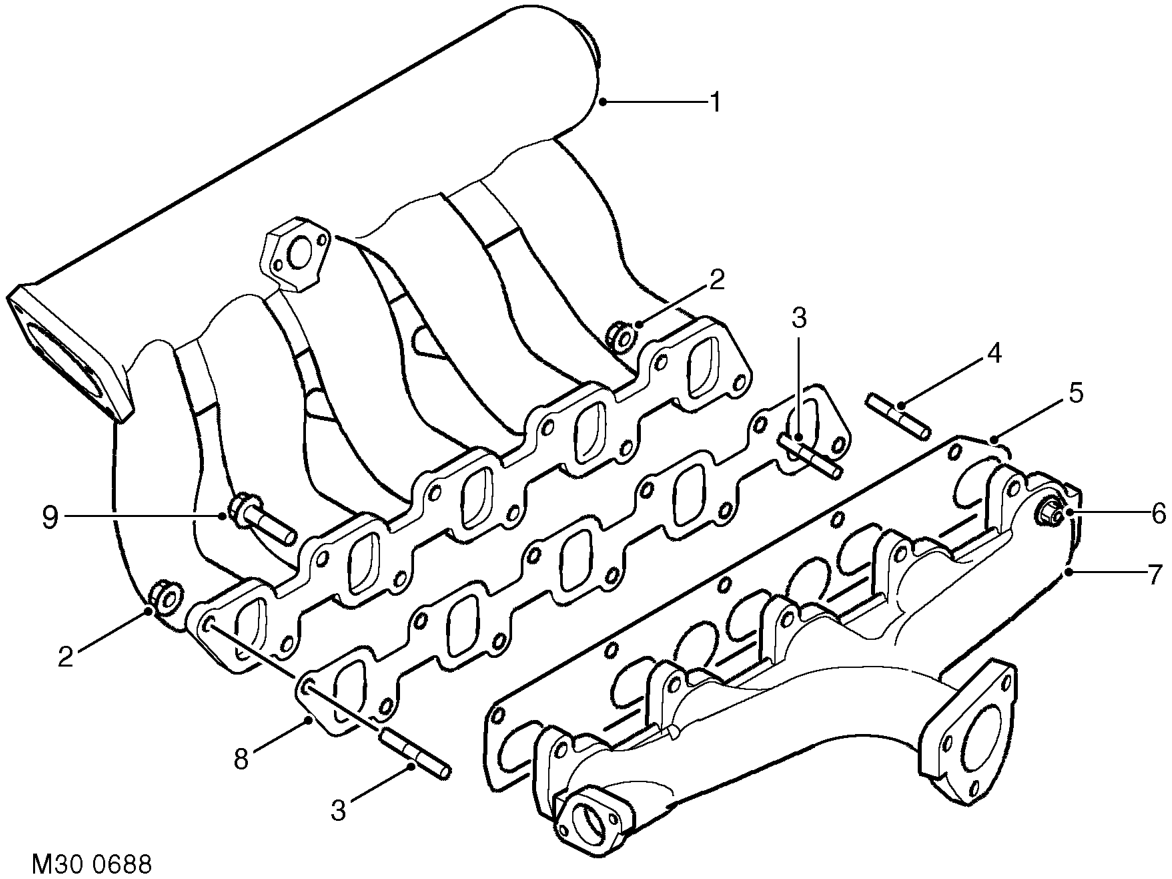

Manifold component layout
1 Inlet manifold 2 Flanged nut 2 off 3 Stud 2 off 4 Stud 10 off 5 Exhaust gasket 6 Flanged nut 10 off 7 Exhaust manifold 8 Inlet gasket 9 Flanged bolt 8 off
