Fuel delivery system - V8Fuel delivery system
FUEL DELIVERY SYSTEM - V8DESCRIPTION AND OPERATION
Fuel delivery system

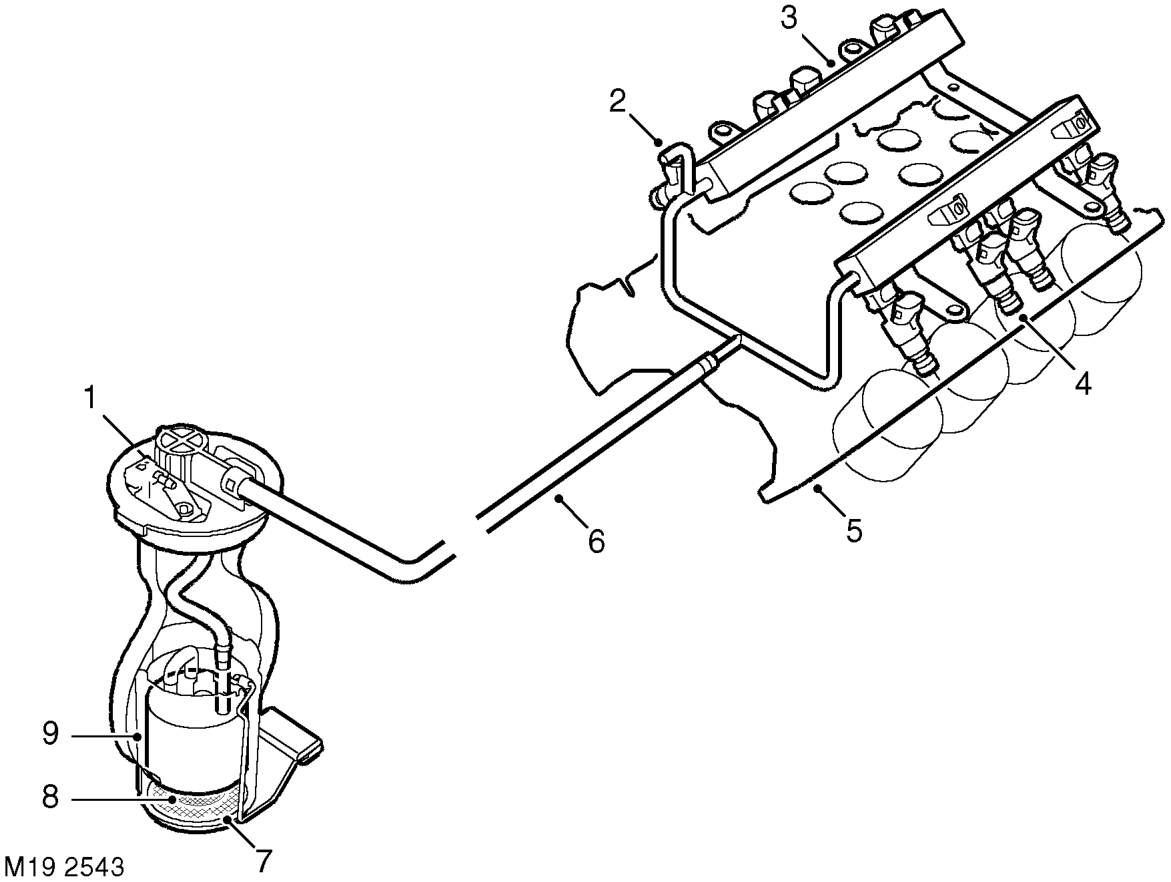

1 Fuel pressure regulator (hidden) 2 Schraeder valve 3 Fuel rail 4 Injectors 5 Engine block 6 Fuel feed pipe 7 Coarse filter 8 Fine filter 9 Fuel pump and fuel gauge sender assembly
