Land Rover Discovery II (UK)15 · Fuel delivery system - Td5
15 · Engine

Switch - fuel filler flap release - from 03MY

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs › Switch - fuel filler flap release - from 03MY
Fuel delivery system - Td5Switch - fuel filler flap release - from 03MY

Switch - fuel filler flap release - from 03MY

$% 19.55.23

Remove

Switch - fuel filler flap release - from 03my – $% 19.55.23

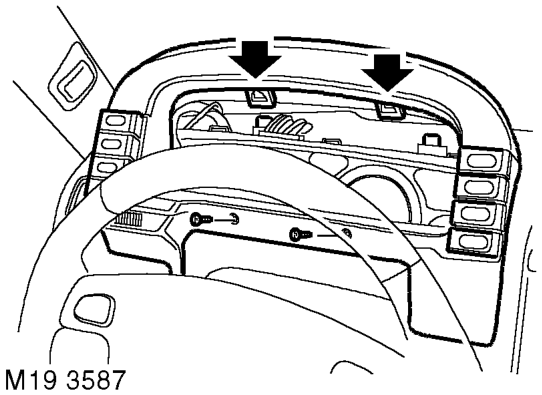

  1. Remove 2 screws securing instrument cowl to fascia and release the cowl from the retaining clips.
Switch - fuel filler flap release - from 03my – Remove 2 screws securing instrument cowl to fascia and release the cowl from the retaining

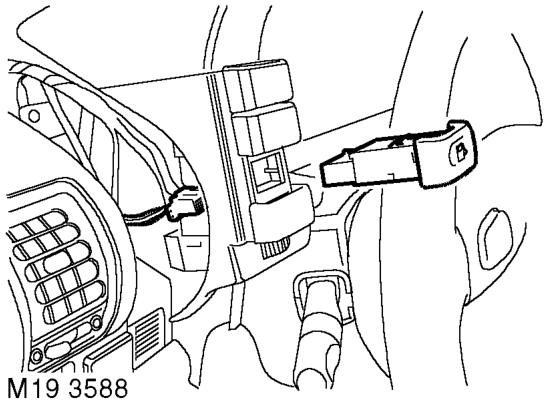

  1. Disconnect multiplug from the fuel filler flap release switch.
  2. Remove the fuel filler flap release switch from the instrument cowl.

Refit

  1. Fit and secure the fuel filler flap release switch to the instrument cowl and connect the multiplug.
  2. Fit the instrument cowl to the fascia and secure with screws.
