Land Rover Discovery II (UK)15 · Fuel delivery system - Td5
15 · Engine

Switch - inertia - fuel cut-off

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs › Switch - inertia - fuel cut-off
Fuel delivery system - Td5Switch - inertia - fuel cut-off · page 1 of 2

REPAIRS

Switch - inertia - fuel cut-off

$% 19.22.09

Remove

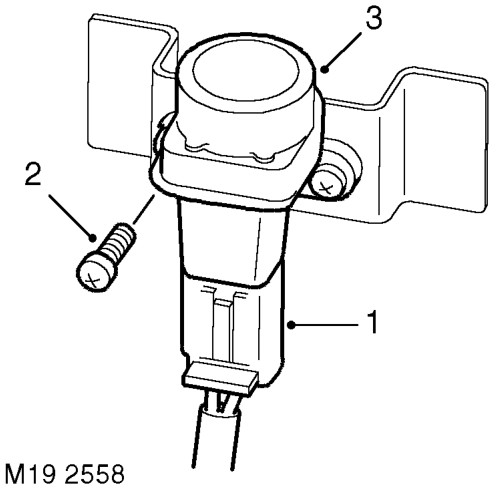

Switch - inertia - fuel cut-off – $% 19.22.09
  1. Disconnect multiplug from fuel cut-off switch.
  2. Remove 2 screws securing fuel cut-off switch to bulkhead.
  3. Remove fuel cut-off switch from bulkhead.

Refit

  1. Position fuel cut-off switch to bulkhead and secure with screws.
  2. Connect multiplug to fuel cut-off switch.
  3. To set the fuel cut-off switch, depress the top of the fuel cut-off switch.

Pump - fuel

$% 19.45.08

NOTE: The fuel pump and fuel gauge tank unit are integral parts of the fuel pump housing and cannot be renewed separately

Remove

  1. Release fixings and remove battery cover.
  2. Disconnect battery earth lead.
  3. Models with third row seats: Remove RH third row seat. SEATS, REPAIRS, Seat - third row.

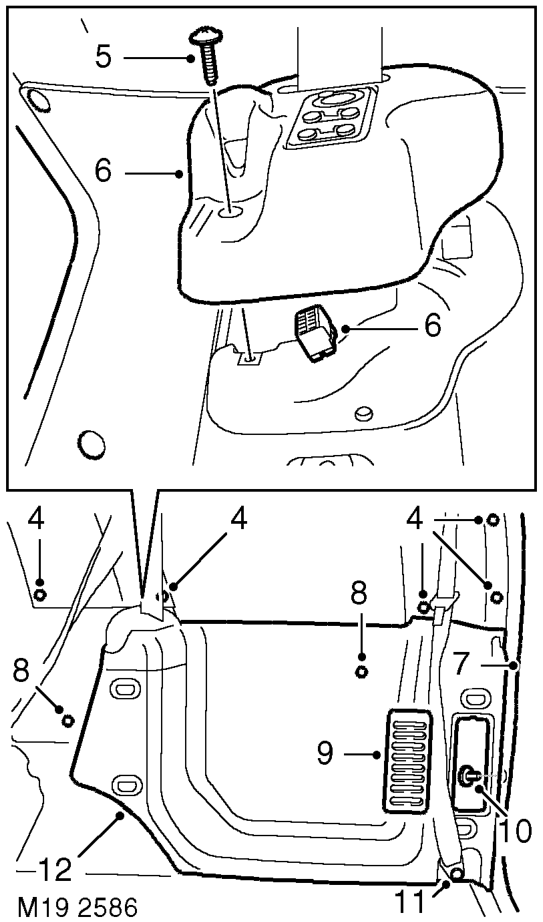

Pump - fuel – Models with third row seats: Remove RH third row seat.  SEATS, REPAIRS, Seat - third row.
  1. Remove 5 trim clips securing lower edge of RH 'D' post trim casing.
  2. Models with rear ICE controls: Remove screw securing remote ICE controls to RH side trim casing.
  3. Models with rear ICE controls: Release ICE controls from RH side trim casing. Disconnect multiplug and remove ICE controls.
  4. Partially remove tail door aperture seal in the area of the RH side trim casing.
