Seat - third row

Seat - third row

$% 78.10.45

Remove

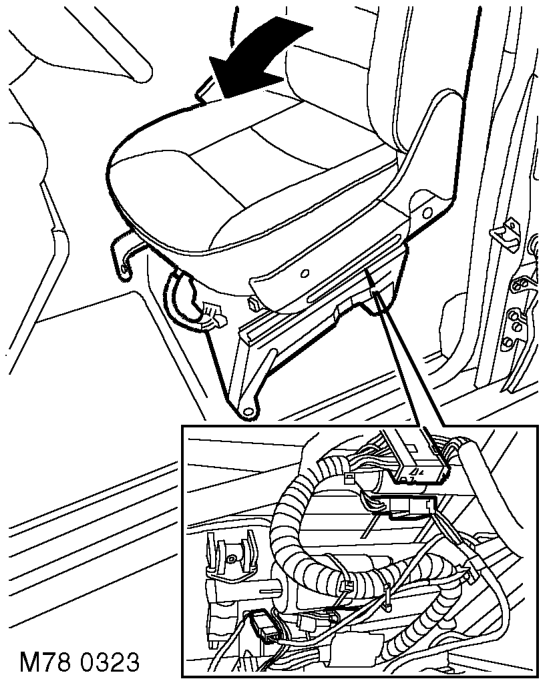

8. Release pretensioner multiplug from seat frame and disconnect.
9. Electrically operated seats: Disconnect 2 seat motor multiplugs.
10. Remove front seat.

Refit

1. Fit front seat in vehicle.
2. Electrically operated seats: Connect seat motor multiplugs.
3. Connect pretensioner multiplug and secure to seat frame.
4. Fit Torx bolts and nut securing front seat to floor and tighten to 45 Nm (33 lbf.ft).
5. Fit front seat belt lower anchorage bolt to front seat and tighten to 32 Nm (24 lbf.ft).
6. Fit cap to lower anchorage bolt.
7. Fit lower trim casing to seat and secure with screws and trim clip.
8. Connect battery earth lead.

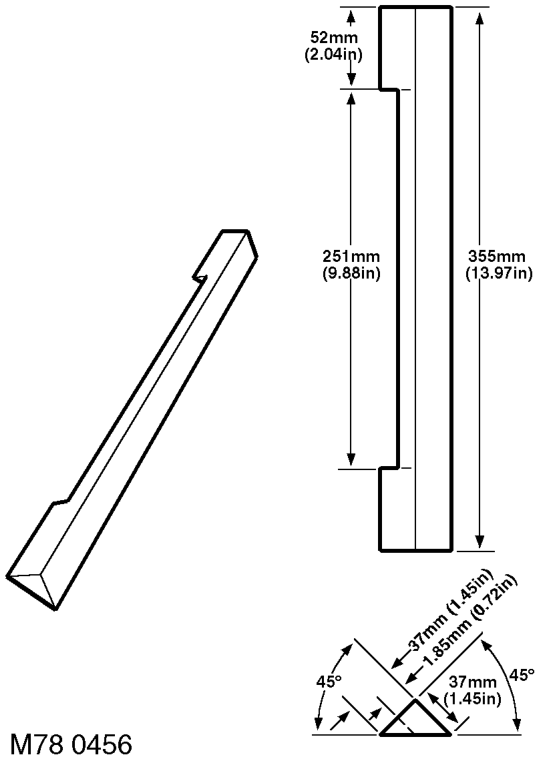

1. Manufacture a spring retainer bracket to the dimensions given above.

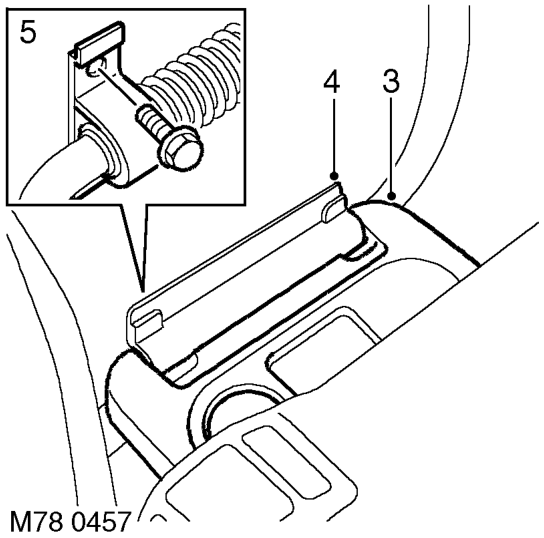

2. Position third row seat in deployed position.

3. Remove the cup holder (where applicable).
