SeatsSeat - front

REPAIRS

Seat - front

$% 78.10.43.99

Remove

  1. Disconnect battery earth lead.
Seat - front – Disconnect battery earth lead.

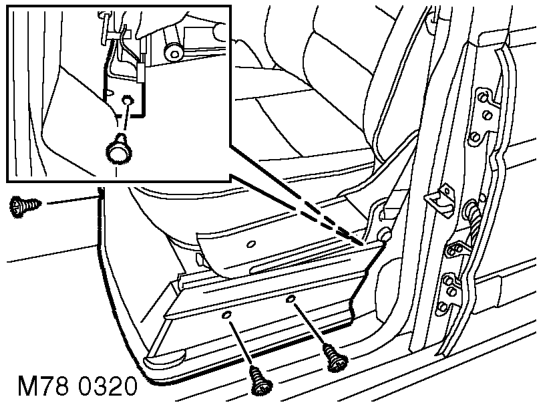

  1. Remove 3 screws and 1 trim clip securing lower trim casing to seat.
  2. Remove lower trim casing.
Seat - front – Remove lower trim casing.

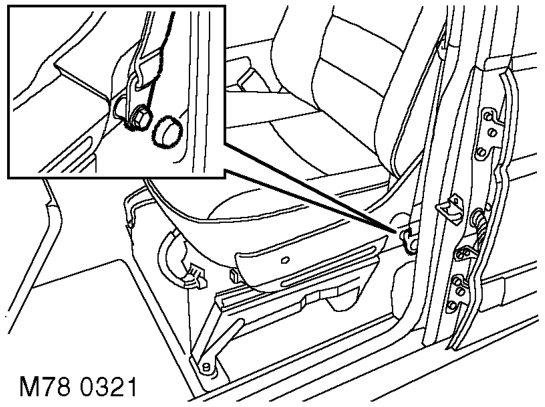

  1. Remove cap from front seat belt lower anchorage bolt.
  2. Remove front seat belt lower anchorage bolt.
Seat - front – Remove front seat belt lower anchorage bolt.

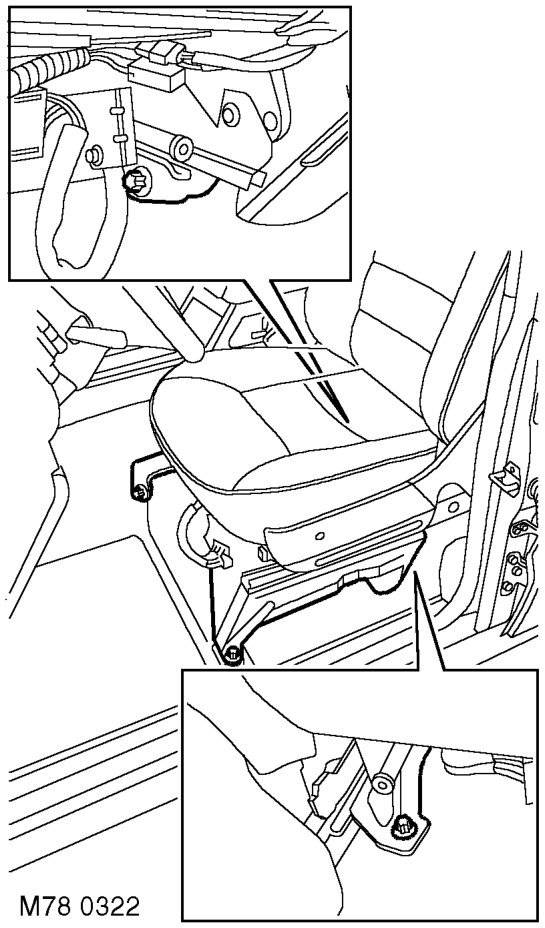

  1. Remove 4 Torx bolts and nut securing front seat to floor.
  2. Lean seat forward to gain access to multiplugs.
