Heating element - squab - front seat

8. Release top and bottom rap round clips in arm rest recess.
9. Remove 3 studs securing squab to centre of frame.
10. Release squab from 5 studs securing RH side.

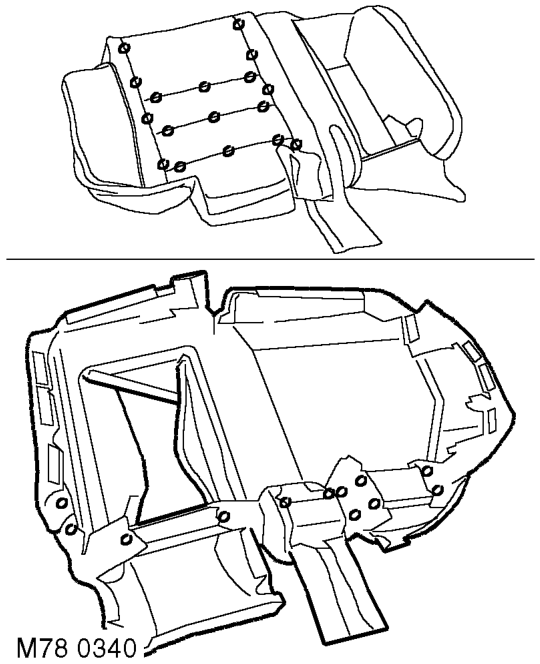

11. Release 9 side clips securing squab to frame, release and remove squab assembly.

12. Release squab from sides of pad to access hog rings.
13. Remove 29 hogs rings and remove squab cover from pad.

Refit

1. Position squab to pad and secure with hog rings.
2. Position squab assembly to frame and secure side clips.
3. Secure squab to hooks at RH side and fit studs to centre of frame.
4. Fit top and bottom rap round clips and hooks in arm rest recess.
5. Fit and secure arm rest assembly.
6. Position squab release lever, connect cable and secure with screws.
7. Fit head restraint guide tubes.
8. Position end cover and secure with screws.
9. Fit centre rear seat belt. RESTRAINT SYSTEMS, REPAIRS, Seat belt - rear - centre.
10. Fit rear seat. SEATS, REPAIRS, Seat - rear.

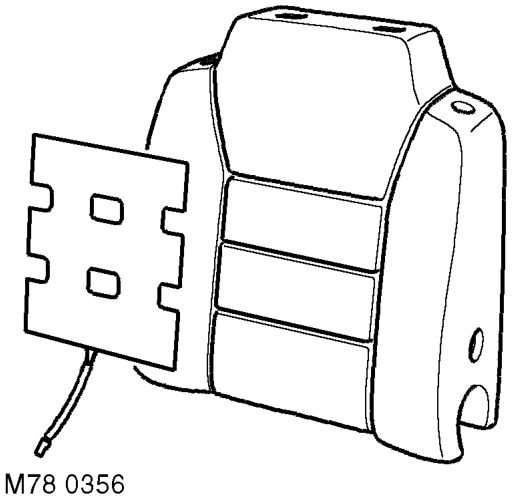

Heating element - squab - front seat

$% 78.90.36

Remove

1. Remove front seat squab cover. SEATS, REPAIRS, Cover - squab - front seat.

2. Disconnect heating element multiplug.
3. Carefully release heating element from squab pad, ensuring adhesive does not tear squab pad.

Refit

1. Ensure squab pad is free of adhesive.
2. Remove adhesive cover from new heating element, position element and secure to squab pad.
3. Fit front seat squab cover. SEATS, REPAIRS, Cover - squab - front seat.
