6. Push 2 retaining bars through pad.
7. Release cushion from sides of pad to access hog rings.

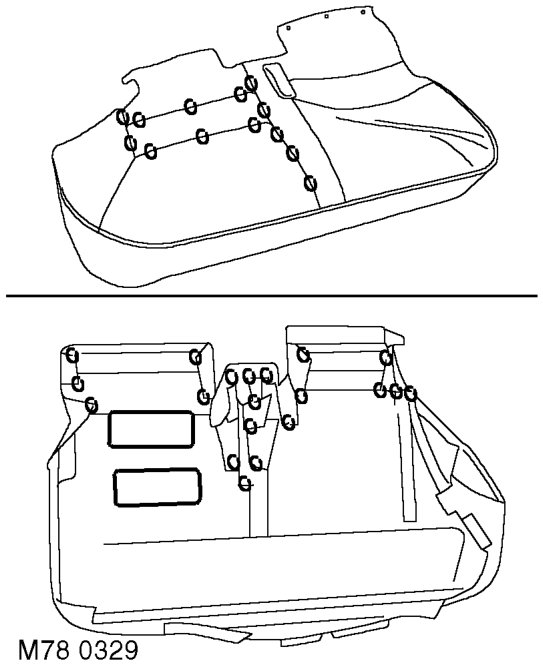

8. Remove 33 hogs rings and remove cushion from pad.

Refit

1. Position cushion to pad and secure with hog rings.
2. Push retaining bars through pad and fit cover to sides of pad.
3. Position cushion assembly to frame and secure side clips.
4. Fit spring clips and secure to hooks at rear of frame.
5. Position under tray and secure with studs.
6. Fit rear seat. SEATS, REPAIRS, Seat - rear.

Bladder - lumbar support

$% 78.60.01

Remove

1. Remove squab cover. SEATS, REPAIRS, Cover - squab - front seat.

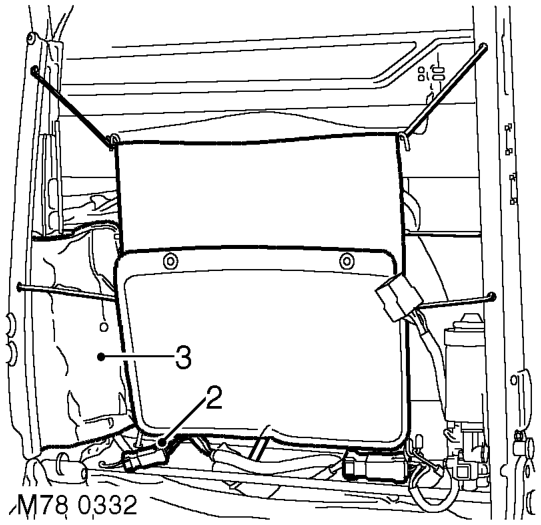

2. Disconnect lumbar support pump multiplug.
3. Release lumbar support pump from bladder retainers.
4. Release bladder from 8 retainers and remove bladder and lumbar support pump.
5. Collect bladder retainers.

Refit

1. Position bladder retainers to seat frame.
2. Position bladder and secure to bladder retainers
3. Position pump in bladder retainers and connect multiplug.
4. Fit squab cover. SEATS, REPAIRS, Cover - squab - front seat.
