SeatsMotor - fore and aft - front seat

Refit

Motor - fore and aft - front seat

$% 78.70 25

Remove

  1. Remove front seat. SEATS, REPAIRS, Seat - front.

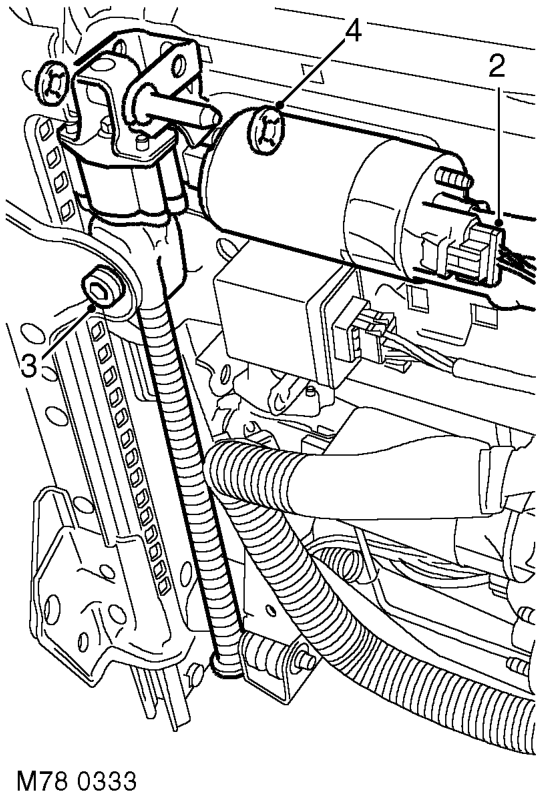

Motor - fore and aft - front seat – Remove front seat.  SEATS, REPAIRS, Seat - front.
  1. Disconnect multiplug from fore and aft motor.
  2. Remove Allen screw securing RH screw thread to seat frame.
  3. Remove 2 retainers from RH fore and aft gearbox roll pin. Remove roll pin.
  4. Remove spacers.
  5. Position RH screw thread retainer clear of seat frame and remove fore and aft motor.
  6. Clean gearbox and motor drive tube.
  7. Position motor drive tube to LH gearbox and align fore and aft motor to seat frame.
  8. Fit new gearbox spacers, roll pin and retainers.
  9. Align RH screw thread retainer to seat frame and secure with Allen screw.

Ensure retainer is correctly aligned or damage may occur when seat motor is operated.

  1. Connect fore and aft motor multiplug.
  2. Fit front seat. SEATS, REPAIRS, Seat - front.
