Rear axleRear axle component layout
REAR AXLEDESCRIPTION AND OPERATION

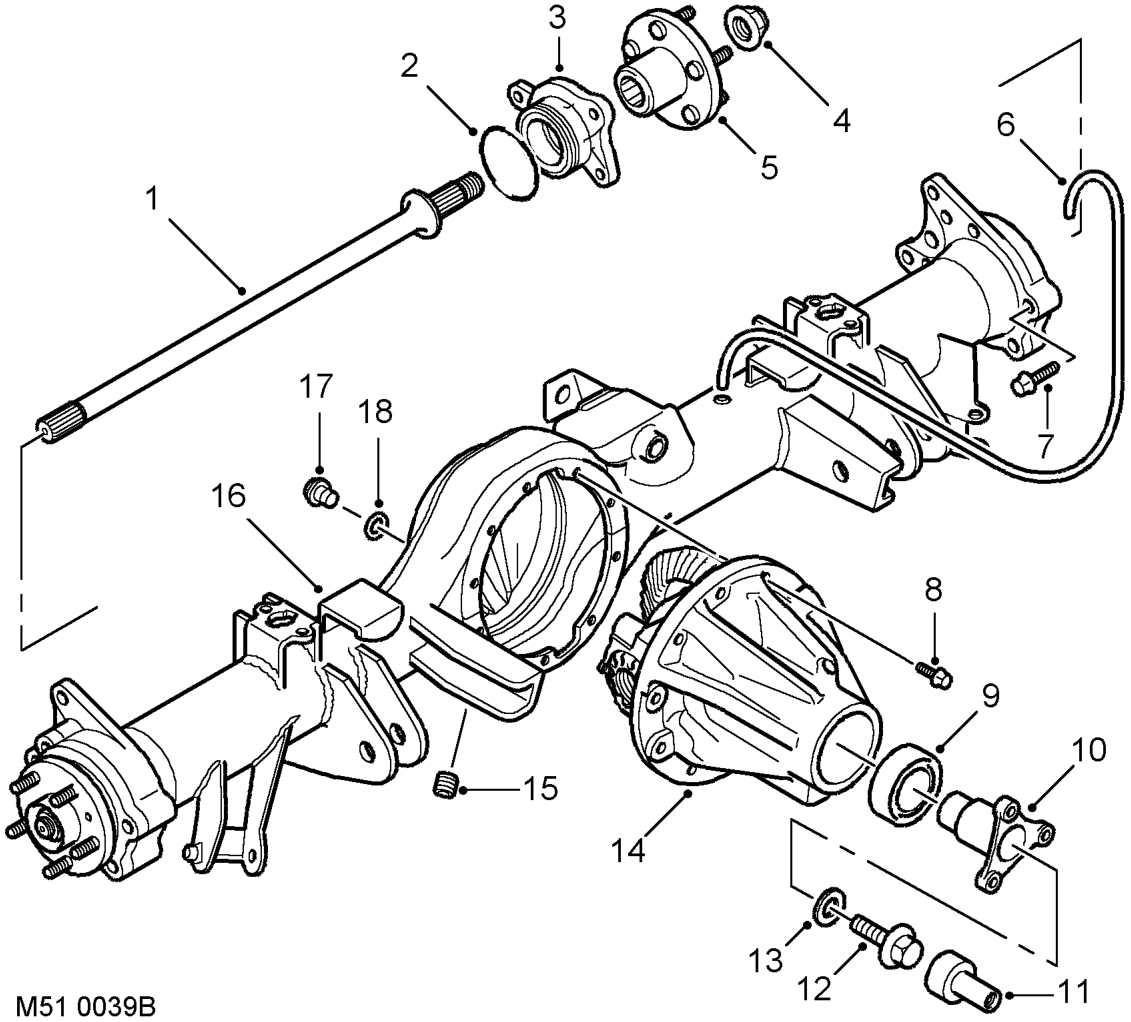

Rear axle component layout
1 Drive shaft 2 'O' ring 3 Hub bearing 4 Stake nut 5 Hub flange 6 Breather tube 7 Bolt 8 Bolt 9 Oil seal
10 Pinion flange 11 Centralising peg 12 Bolt 13 Washer 14 Differential unit 15 Drain plug 16 Axle casing 17 Oil level plug 18 'O' ring
