SteeringSteering system component layout
STEERINGDESCRIPTION AND OPERATION

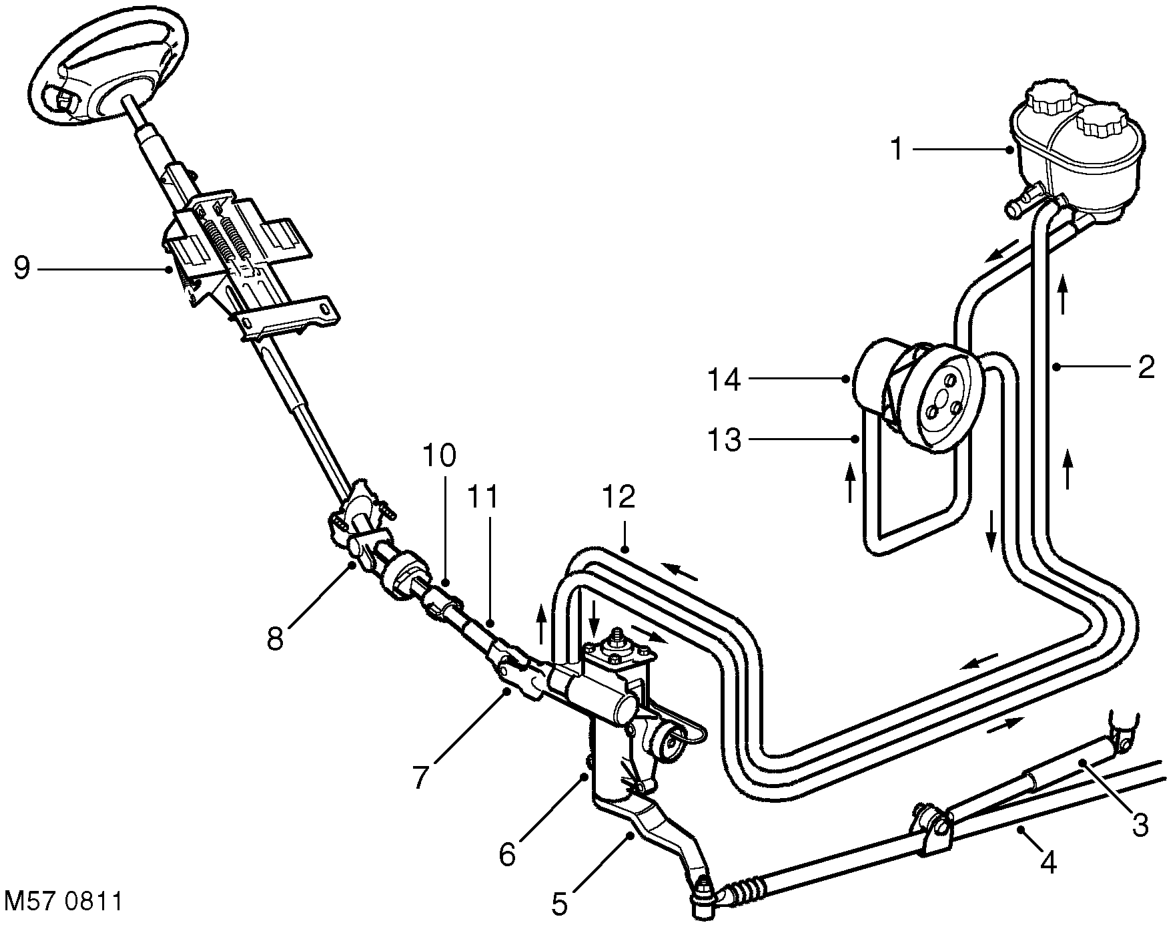

Steering system component layout
RH drive shown LH drive similar
1 Fluid reservoir 2 Return line 3 Steering damper 4 Drag link 5 Drop arm 6 Steering box 7 Universal joint and split adapter
8 Universal joint and coupling 9 Steering column 10 Decouple joint 11 Intermediate shaft 12 Pressure line 13 Suction (inlet) line 14 PAS pump
