Fuel delivery system - Td5Fuel delivery system component location
FUEL DELIVERY SYSTEM - Td5DESCRIPTION AND OPERATION

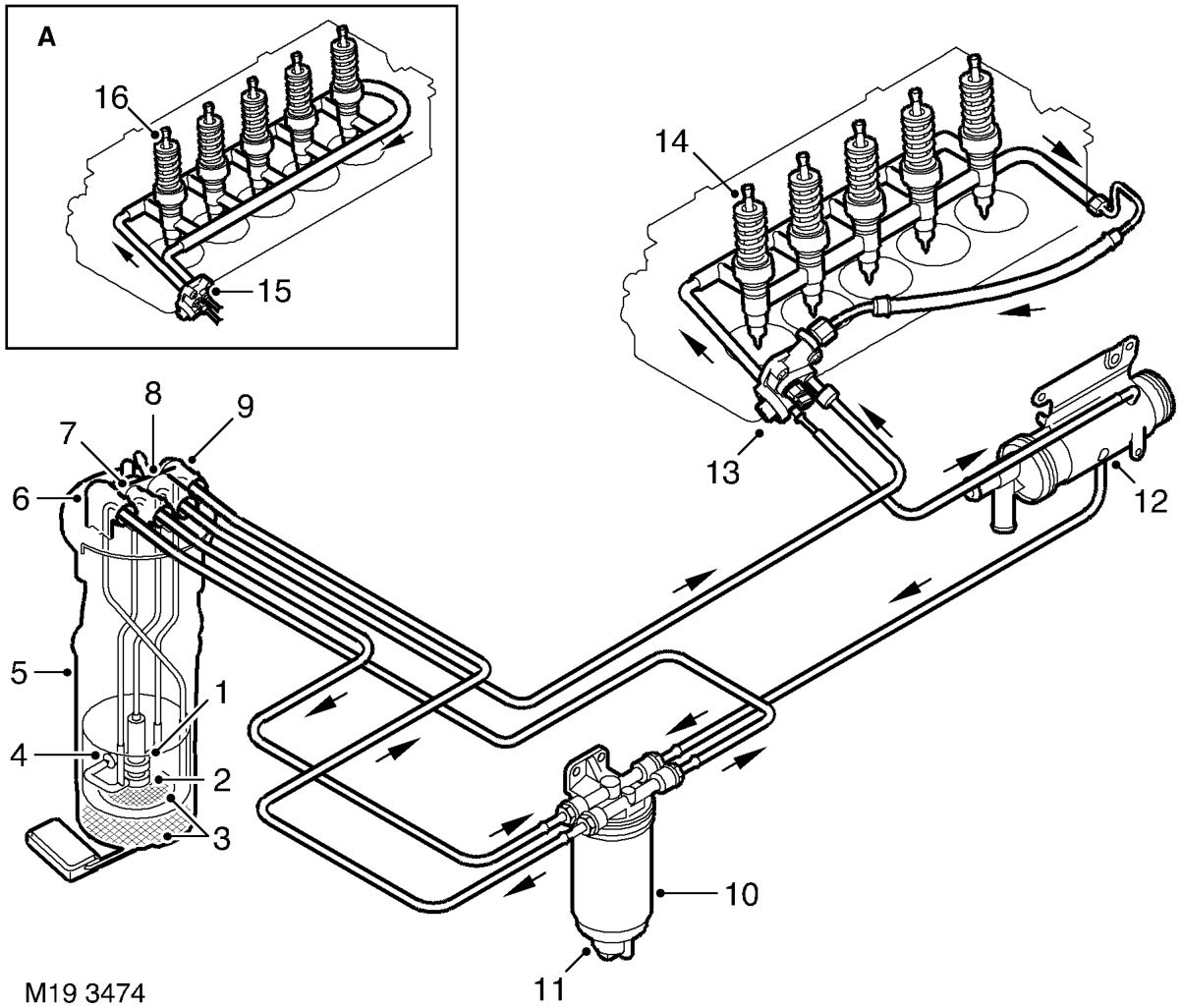

Fuel delivery system component location
A = Pre EU3 models
1 HP stage 2 LP stage 3 Filters 4 Jet pump 5 Fuel pump and fuel gauge sender assembly 6 LP return connection 7 LP feed connection 8 HP feed connection
9 Air bleed connection 10 Fuel filter 11 Water sensor 12 Fuel cooler 13 Fuel pressure regulator (EU3 models) 14 Electronic unit injectors 15 Fuel pressure regulator (pre EU3 models) 16 Electronic unit injectors
