Fuel tank and breather components (Fuel delivery system - Td5)
- Make
- Land Rover
- Model
- Discovery II (UK)
- Section
- Description and operation › Fuel tank and breather components
Fuel delivery system - Td5Fuel tank and breather components
Fuel tank and breather components

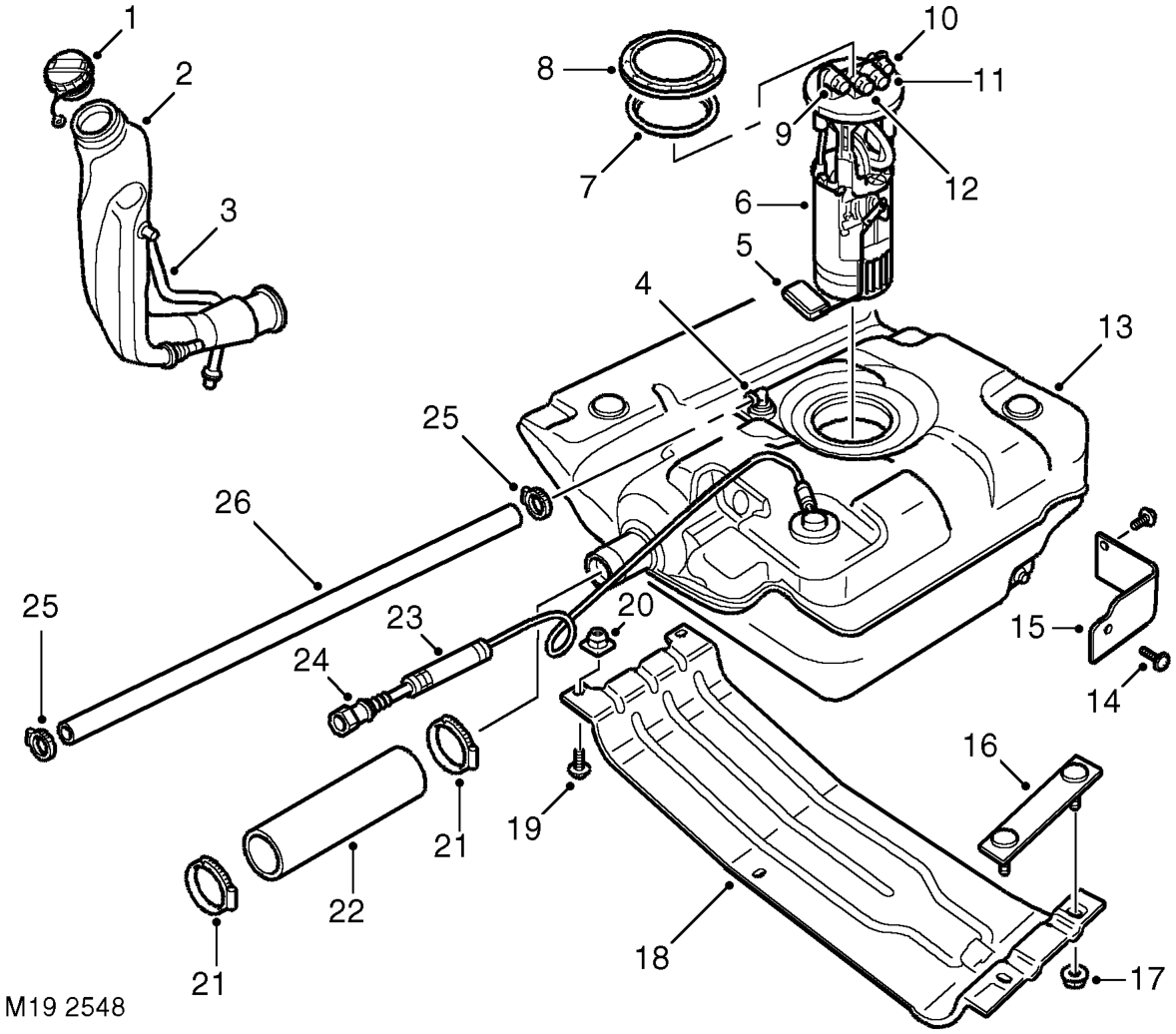

1 Fuel filler cap 2 Filler tube 3 Atmospheric vent pipe 4 Tank breather connection 5 Fuel gauge sender float 6 Fuel pump and fuel gauge sender assembly 7 Seal 8 Locking ring 9 Low pressure return connection 10 Air bleed connection 11 High pressure feed connection 12 Low pressure feed connection 13 Fuel tank and breather assembly
14 Scrivet 2 off 15 Heat shield 16 Stud plate 17 Nut 2 off 18 Cradle 19 Bolt 2 off 20 Nut plate 2 off 21 Hose clip 2 off 22 Hose 23 Vent pipe 24 Vent pipe coupling 25 Hose clip 2 off 26 Breather hose
