_{IN CAR ENTERTAINMENTDESCRIPTION AND OPERATION}

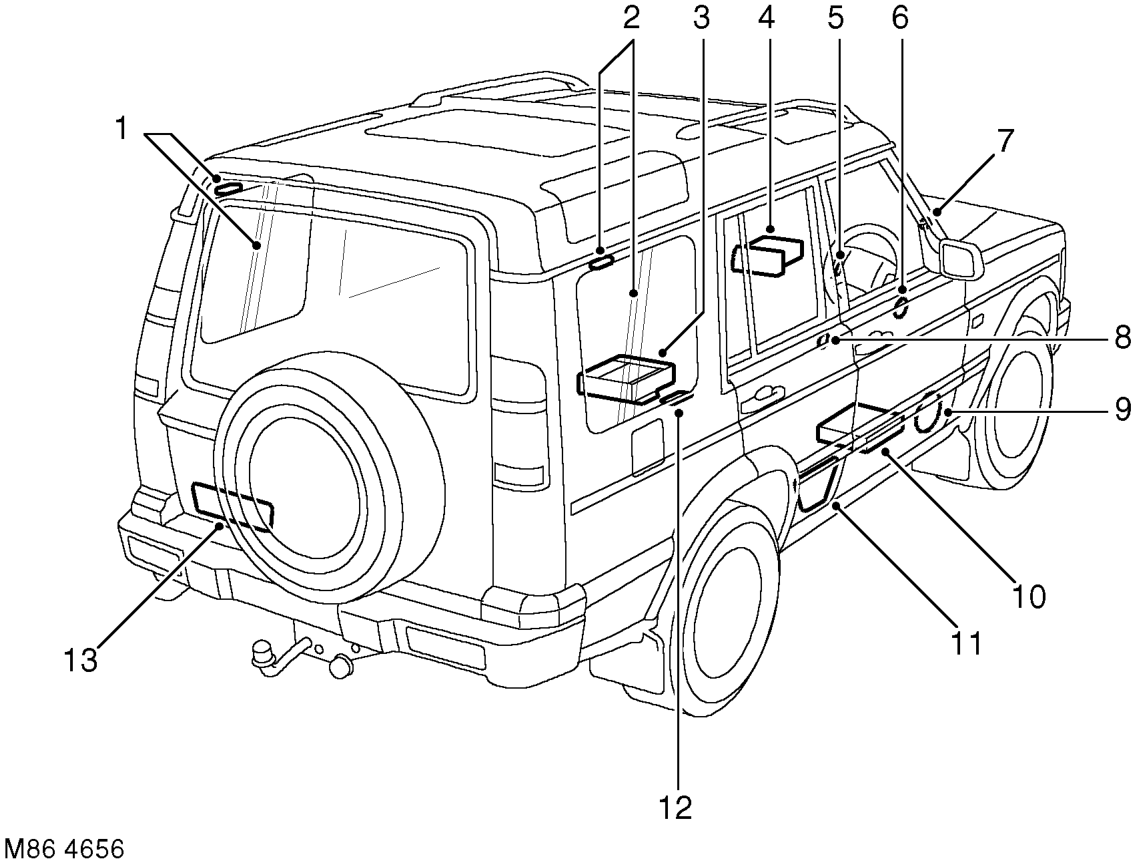

ICE System Component layout

High line RHD system shown (LHD system similar)

1 FM aerial and amplifier (high line only) 2 AM/FM aerial and amplifier 3 Power amplifier (high line only) 4 Radio cassette player 5 Remote radio control switches (mid line and high line only) 6 Upper front door speaker LH/RH (high line only) 7 A post speaker LH/RH (mid line and high line only)

8 Upper rear door speaker, LH/RH (high line only) 9 Lower front door speaker LH/RH 10 CD-autochanger (if fitted) 11 Lower rear door speaker LH/RH 12 Radio headphone amplifier LH/RH (high line only) 13 Tail door speakers (high line only)
