High line ICE system control diagram (In car entertainment)
- Make
- Land Rover
- Model
- Discovery II (UK)
- Section
- Description and operation › High line ICE system control diagram
In car entertainmentHigh line ICE system control diagram

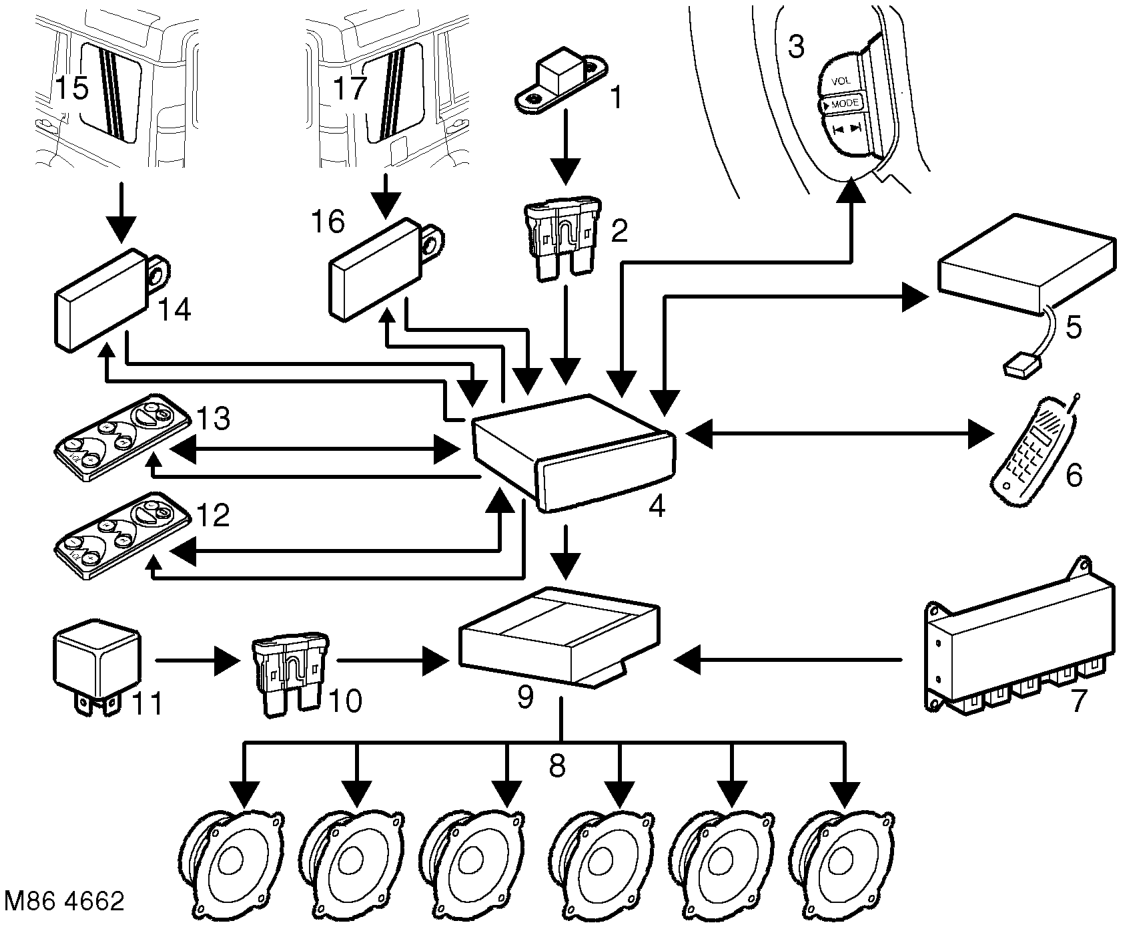

High line ICE system control diagram
1 Fusible link 2 Battery power supply fuse 3 Remote radio control switches 4 Radio cassette 5 CD-autochanger 6 Telephone system interface 7 Speed signal from SLABS ECU 8 Speakers 9 Power amplifier
10 Auxiliary power supply fuse 11 Auxiliary relay 12 Radio headphone amplifier RH rear 13 Radio headphone amplifier LH rear 14 Amplifier FM aerial 15 FM aerial 16 Amplifier AM/FM aerial 17 AM/FM aerial
