Land Rover Discovery II (UK)38 · Seats
38 · Body & interior

Seat - rear Cover - cushion - front seat

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs › Seat - rear Cover - cushion - front seat
SeatsSeat - rear Cover - cushion - front seat · page 1 of 2

Seat - rear Cover - cushion - front seat

$% 78.10.48.99 $% 78.30.01/81

This procedure is applicable to both rear seats. Remove

Remove

  1. Carefully pull carpet away from the rear seat base to gain access to mounting brackets.

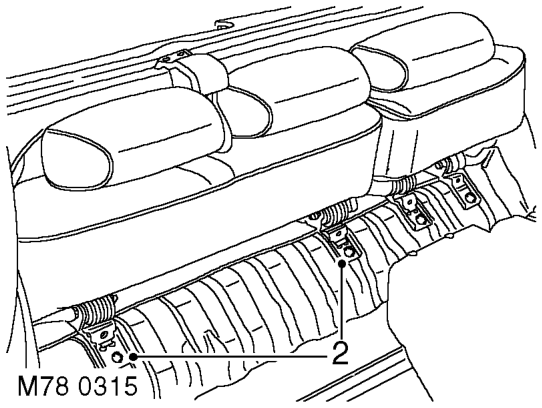

Seat - rear cover - cushion - front seat – Carefully pull carpet away from the rear seat base to gain access to mounting brackets.
  1. Remove 2 Torx bolts securing front of mounting brackets to floor.

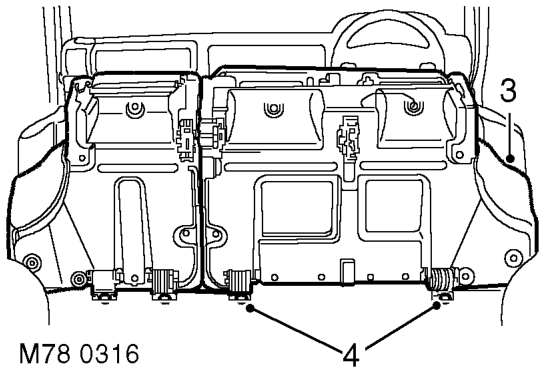

Seat - rear cover - cushion - front seat – Remove 2 Torx bolts securing front of mounting brackets to floor.
  1. Fold rear seats fully forward.
  2. Remove the 2 Torx bolts securing rear of mounting brackets to floor.
  3. Remove rear seat.

Refit

  1. Position rear seat to floor in the fully folded position. Fit Torx screws to rear of mounting brackets and tighten to 45 Nm (33 lbf.ft).
  2. Position rear seat in upright position. Fit Torx bolts to front of mounting brackets and tighten to 45 Nm (33 lbf.ft).
  3. Position front carpet.
  4. Remove front seat. SEATS, REPAIRS, Seat - front.
  5. Place seat on a suitable work bench.

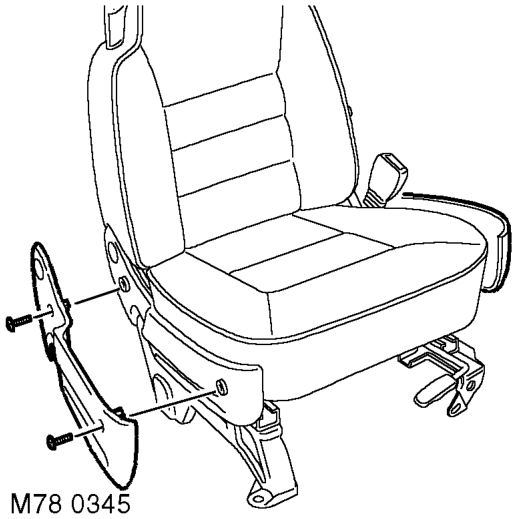

Seat - rear cover - cushion - front seat – Place seat on a suitable work bench.
  1. Remove 2 screws securing outer edge trim casing to seat frame.
  2. Remove trim casing.
  3. Release inner edge trim casing from seat frame.
  4. Remove trim casing.

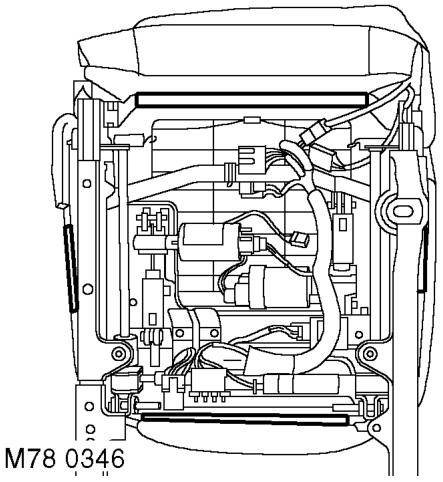

Seat - rear cover - cushion - front seat – Remove trim casing.
  1. Position seat upside down on table.
  2. Release clip securing front edge of cushion cover to seat frame.
  3. Release clips securing side edges of cushion cover to seat frame.
