REPAIRS

Seat belt - front

$% 76.73.13

Remove

  1. Remove 'B' post lower trim casing. INTERIOR TRIM COMPONENTS, REPAIRS, Trim casing - lower - 'B' post.

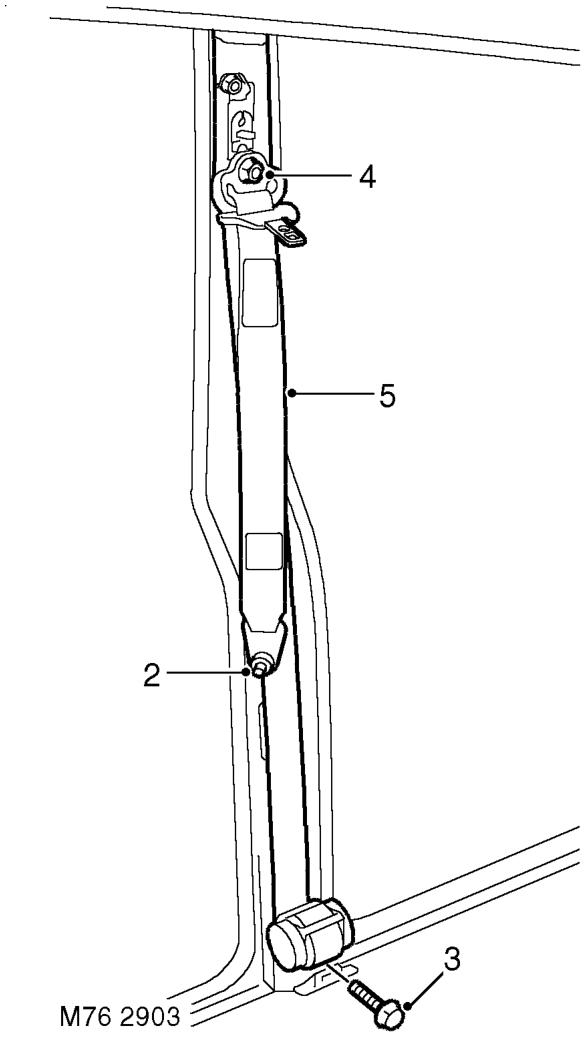

Seat belt - front – Remove 'B' post lower trim casing.  INTERIOR TRIM COMPONENTS, REPAIRS, Trim casing - lowe
  1. Remove bolt securing seat belt to front seat.
  2. Remove bolt securing seat belt reel to 'B' post.
  3. Remove seat belt upper anchorage nut.
  4. Remove seat belt.

Refit

  1. Fit seat belt upper anchorage and tighten nut to 32 Nm (24 lbf.ft).
  2. Fit seat belt reel to 'B' post and tighten bolt to 50 Nm (37 lbf.ft).
  3. Fit seat belt to front seat and tighten bolt to 32 Nm (24 lbf.ft).
  4. Fit 'B' post lower trim casing. INTERIOR TRIM COMPONENTS, REPAIRS, Trim casing - lower - 'B' post.

Seat belt - rear - centre

$% 76.73.20

Remove

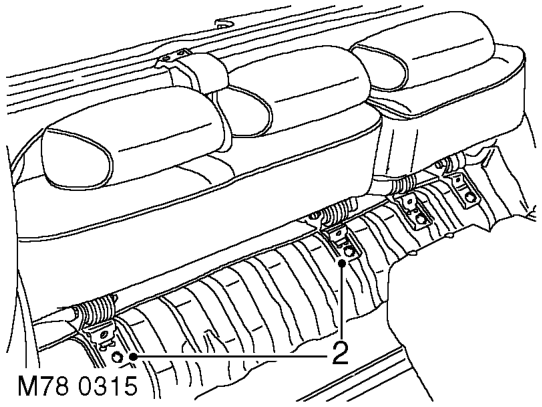

Seat belt - rear - centre – $% 76.73.20
  1. Carefully pull front carpet away from rear seat base to gain access to front mounting brackets of RH rear seats.
  2. Remove 2 Torx bolts securing front mounting brackets of RH rear seats to floor.

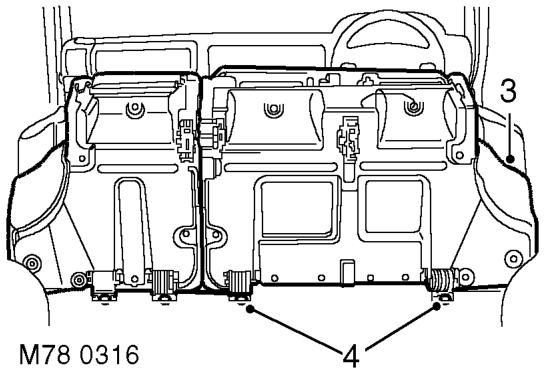

Seat belt - rear - centre – Remove 2 Torx bolts securing front mounting brackets of RH rear seats to floor.
  1. Recline and fold RH rear seats.
  2. Remove 2 Torx bolts securing rear mounting brackets of RH rear seats to floor.
  3. Remove RH rear seats.
