Trim casing - lower - 'B' post

Trim casing - lower - 'B' post

$% 76.13.29

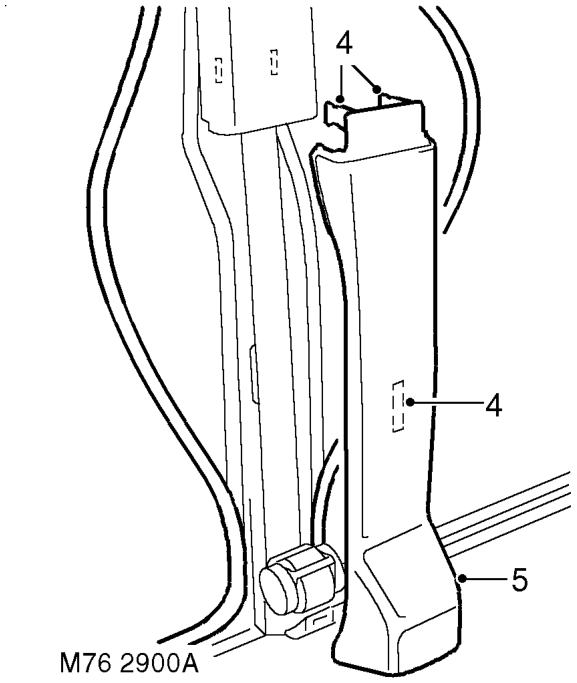

Remove

1. Release front door aperture seal from 'B' post.
2. Release rear door aperture seal from 'B' post.
3. Move 'B' post upper trim casing aside.
4. Release 3 clips securing lower trim casing to 'B' post.
5. Remove lower trim casing.

Refit

1. Fit lower trim casing to 'B' post and secure with clips.
2. Position 'B' post upper trim casing to 'B' post.
3. Fit front door aperture seal to 'B' post.
4. Fit rear door aperture seal to 'B' post.

Trim casing - 'D' post

$% 76.13.73

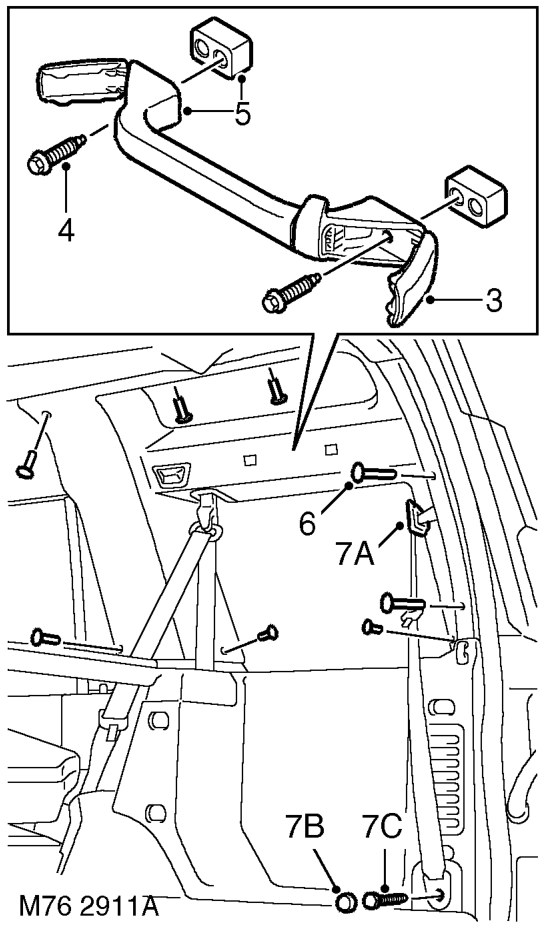

Remove

1. Fold rear seat forward.
2. Remove tail door aperture upper trim casing.

3. Release caps from end of grab handle.
4. Remove 2 bolts securing grab handle to body.
5. Remove grab handle and collect two spacers.
6. Remove 8 trim clips securing trim casing to body.
7. Models with third row seats: a Remove third row seat belt escutcheon. b Remove cap from lower anchorage of third row seat belt. c Remove lower anchorage bolt.
