Louvre panel assembly - centre fascia

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs › Louvre panel assembly - centre fascia
Interior trim componentsLouvre panel assembly - centre fascia · page 1 of 4

Louvre panel assembly - centre fascia

$% 76.46.42

Remove

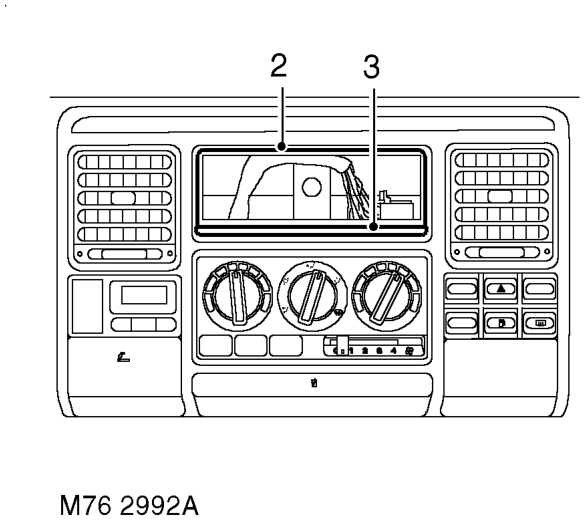

  1. Remove radio cassette player from fascia. IN CAR ENTERTAINMENT, REPAIRS, Radio cassette player.
Louvre panel assembly - centre fascia – Remove radio cassette player from fascia.  IN CAR ENTERTAINMENT, REPAIRS, Radio cassette
  1. Carefully release and remove radio DIN socket from louvre panel.
  2. Remove screw cover from radio aperture.
  3. Remove drink tray assembly. INTERIOR TRIM COMPONENTS, REPAIRS, Drink tray assembly - centre fascia.
Louvre panel assembly - centre fascia – Remove drink tray assembly.  INTERIOR TRIM COMPONENTS, REPAIRS, Drink tray assembly - cen

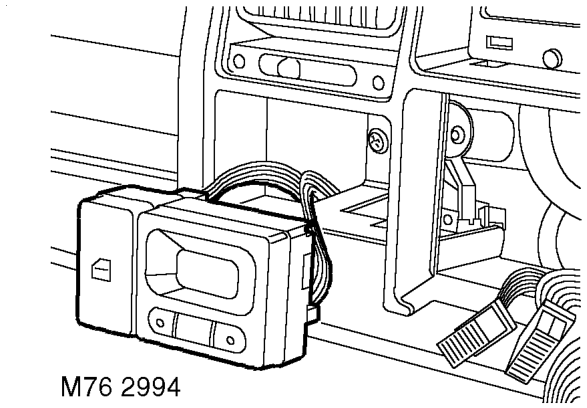

  1. Carefully release clock assembly from louvre panel.
  2. Disconnect multiplugs from clock and door locking switch. Remove clock assembly.
Louvre panel assembly - centre fascia – Disconnect multiplugs from clock and door locking switch. Remove clock assembly.

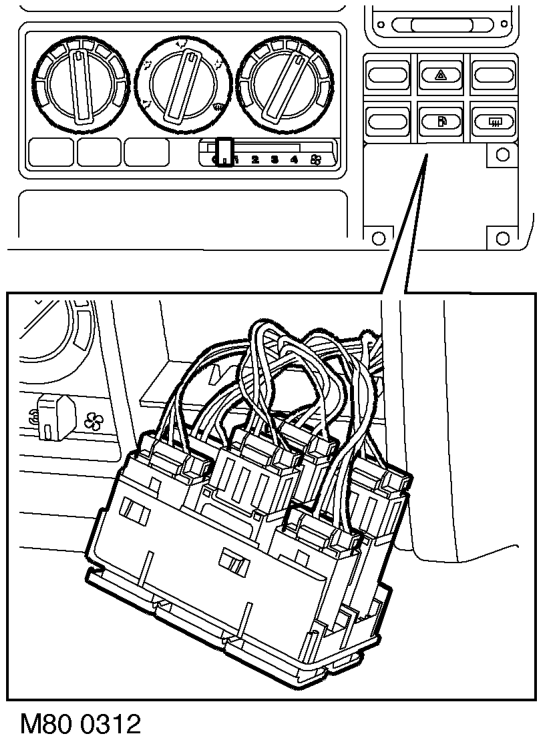

  1. Carefully release switch pack from louvre panel.
  2. Disconnect multiplugs from switches and remove switch pack.

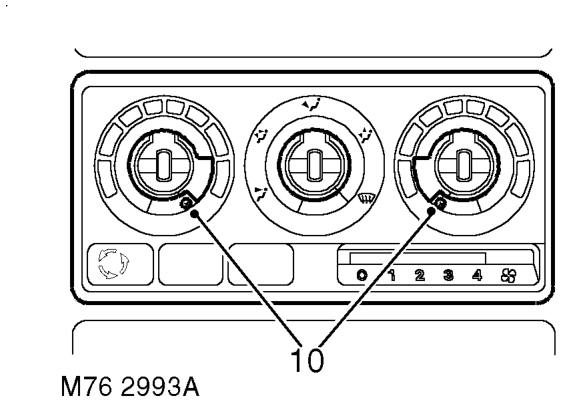

9. Models without A/C: Carefully remove blower speed and heater control knobs.

Louvre panel assembly - centre fascia – 9. Models without A/C: Carefully remove blower speed and heater control knobs.
  1. Models without A/C: Remove 2 screws securing heater control panel graphic plate and remove graphic plate.
