Land Rover Discovery II (UK)36 · Interior trim components
36 · Body & interior

Stowage pocket - front

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs › Stowage pocket - front
Interior trim componentsStowage pocket - front

Stowage pocket - front

$% 76.67.26

Remove

  1. Remove access panel from front edge of front stowage pocket.

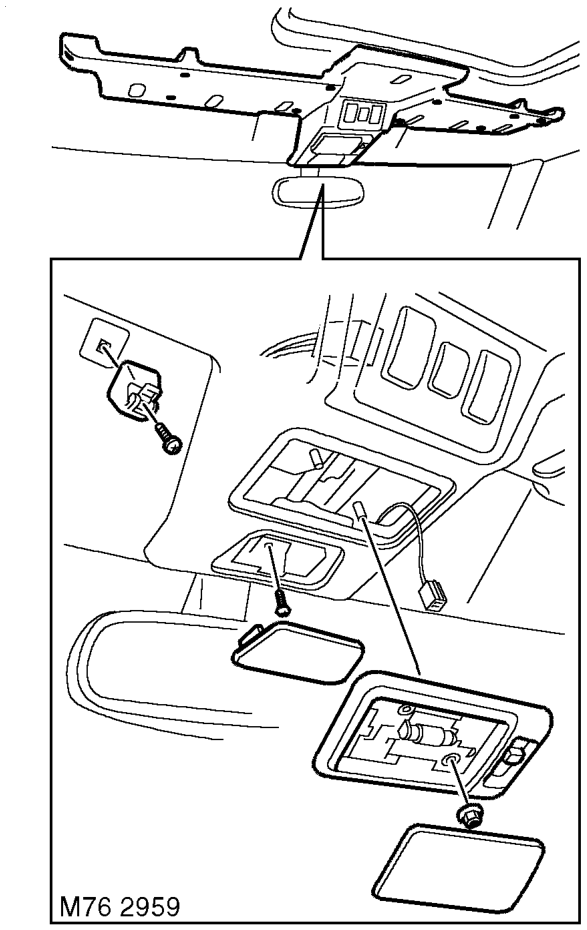

Stowage pocket - front – Remove access panel from front edge of front stowage pocket.
  1. Remove screw securing front stowage pocket to headlining.
  2. Remove lense from front interior lamp.
  3. Remove 2 nuts securing front interior lamp to headlining.
  4. Disconnect multiplug from front interior lamp.
  5. Remove front interior lamp.
  6. Remove 10 screws securing front stowage pocket to headlining.
  7. Disconnect 3 multiplugs from sunroof switches.
  8. Remove front stowage pocket.

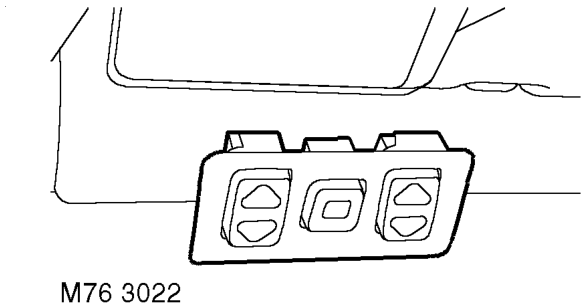

Stowage pocket - front – Remove front stowage pocket.
  1. Release clips securing sunroof switch pack.
  2. Remove switch pack.

Refit

  1. Fit sunroof switch pack to front stowage pocket and secure with clips.
  2. Position front stowage pocket to headlining and connect multiplugs to sunroof switches.
  3. Fit and tighten 10 screws securing front stowage pocket to headlining.
  4. Connect multiplug to front interior lamp.
  5. Fit front interior lamp to headlining and secure with nuts.
  6. Fit lense to front interior lamp.
  7. Fit and tighten screw securing front of front stowage pocket to headlining.
  8. Fit access panel to front stowage pocket.
