Console - centre - automatic models

Console - centre - automatic models

$% 76.25.01

Remove

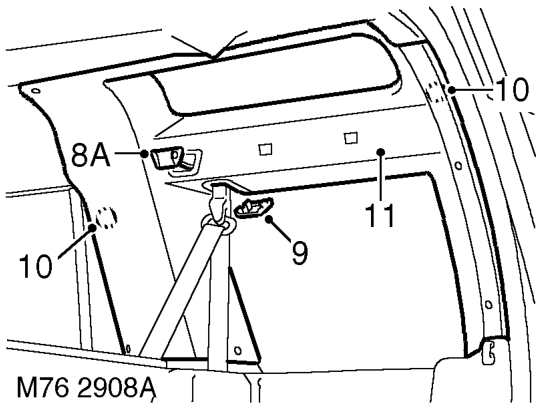

8. Models with volumetric alarm: a Release volumetric sensor from trim casing. b Disconnect multiplug from volumetric sensor. c Remove volumetric sensor.
9. Remove rear seat belt blanking plate.
10. Release 2 clips securing trim casing to body.
11. Remove trim casing.

Refit

1. Fit trim casing and secure with clips.
2. Fit rear seat belt blanking plate.
3. Models with volumetric alarm: a Position volumetric sensor to trim casing and connect multiplug. b Fit volumetric sensor to trim casing.
4. Models with third row seats: a Fit lower anchorage of third row seat belt and tighten bolt to 32 Nm (24 lbf.ft). b Fit cap to lower anchorage bolt. c Fit third row seat belt escutcheon to trim casing.
5. Fit trim clips securing trim casing to body.
6. Position grab handle and spacers to trim casing.
7. Fit and tighten bolts securing grab handle to body to 3 Nm (2.2 lbf.ft).
8. Close caps on ends of grab handle.
9. Fit tail door aperture upper trim casing.
10. Reposition rear seat.

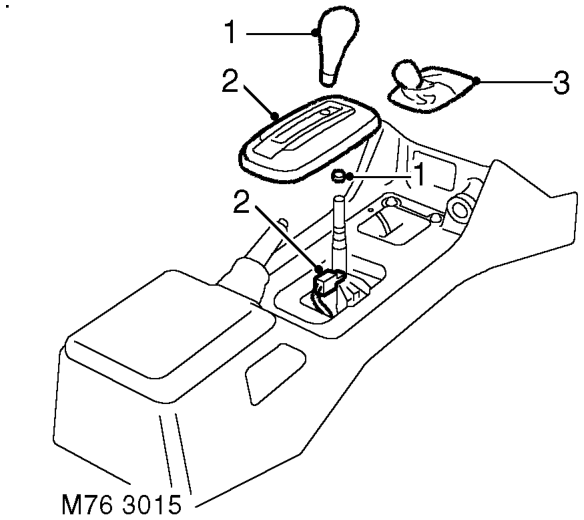

1. Select position 'D', remove gear selector knob and collect spacer.
2. Models from 03MY:Remove both centre console cup holders.
3. Release selector panel, disconnect multiplug and remove panel .
4. Release clips securing transfer box lever gaiter to centre console and remove knob and gaiter.
