Console - centre - automatic models (page 3 of 3)

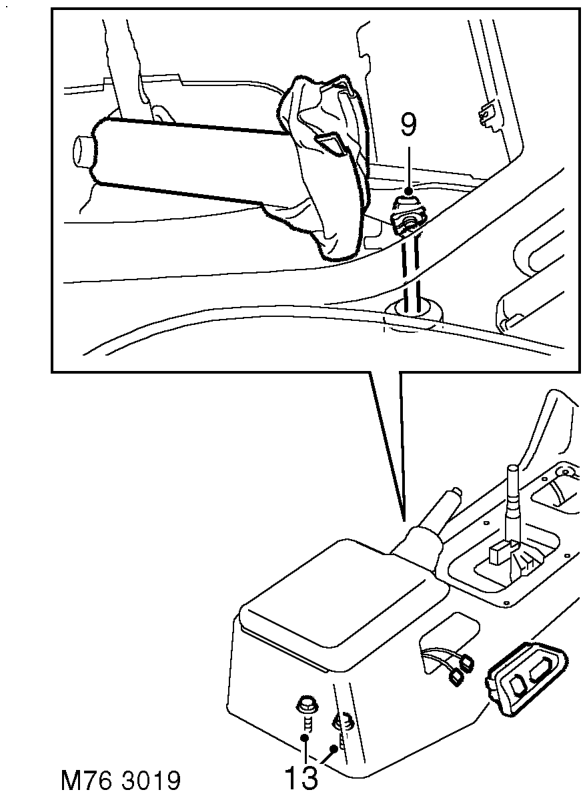

17. Remove console.

18. Remove 4 screws securing storage bin lid to

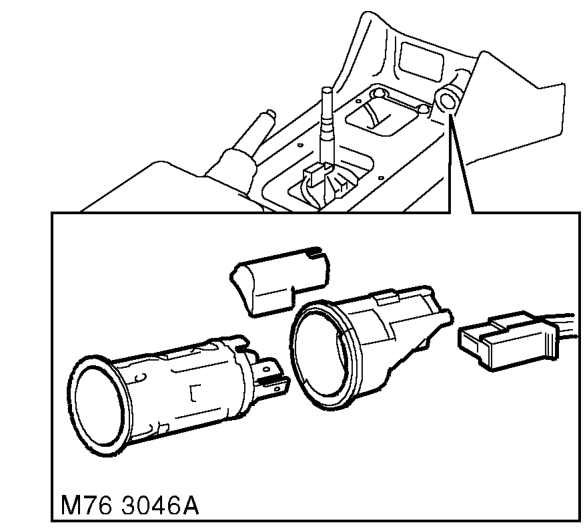

19. Release cigar lighter body from console and

Refit

9. Release handbrake gaiter from console.
10. Remove clip and clevis pin securing cable to handbrake lever.
11. Move handbrake to fully upward position.
12. Release electric seat switches from console.
13. Disconnect multiplugs from switches and remove.
14. Remove 2 bolts securing rear of console to transmission tunnel.
10. Fit cable to handbrake and secure with clevis
15. Release centre console from fascia.
11. Fit handbrake gaiter to console.
12. Fit bolts securing forward edge of console to

13. Models with veneer trim:
14. Models with base trim:
15. Models with base trim:
16. Fit transfer box gaiter and knob to lever.
17. Secure transfer box gaiter to console.
18. Connect multiplug to selector panel, fit and
19. Fit spacer and knob to gear selector lever.
20. Models from 03MY:
16. Disconnect multiplug and bulb from cigar lighter.

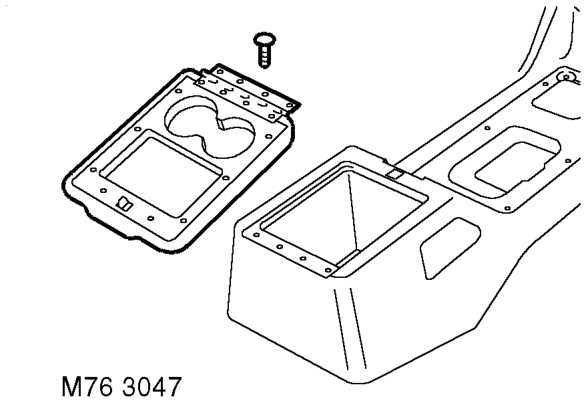

NOTE: Do not carry out further dismantling if component is removed for access only.

console and remove lid.

remove.

1. Fit and secure cigar lighter body to console.
2. Fit lid to console and secure with screws.
3. Fit console.
4. Connect multiplug and bulb to cigar lighter.
5. Fit centre console to fascia.
6. Fit 2 bolts securing rear of console to transmission tunnel.
7. Connect multiplugs to seat switches.
8. Fit switches to console.
9. Move handbrake to lowered position.

pin and clip.

transmission tunnel. Position veneered console cover and connect multiplugs to switch pack. Fit cigar lighter element and secure veneered console cover to console. Connect multiplugs to switch pack, fit switch pack to console and secure with screws. Fit cover plate to switch pack, and rubber mat to console.

secure panel to centre console.

Fit both centre console cup holders.
