Console - centre - automatic models (page 2 of 3)
- Make
- Land Rover
- Model
- Discovery II (UK)
- Section
- Repairs
Interior trim componentsConsole - centre - automatic models · page 2 of 3

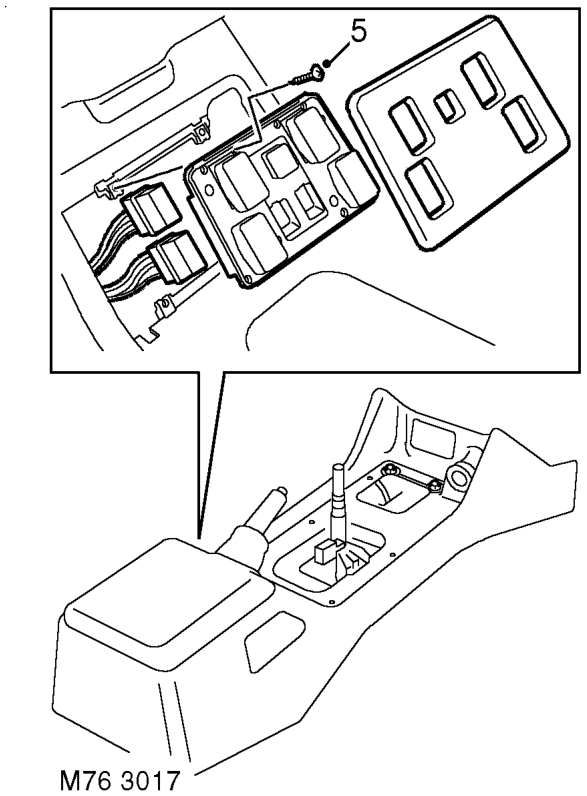

- Models with base trim: Remove rubber mat from centre console and remove cover plate from switch pack.

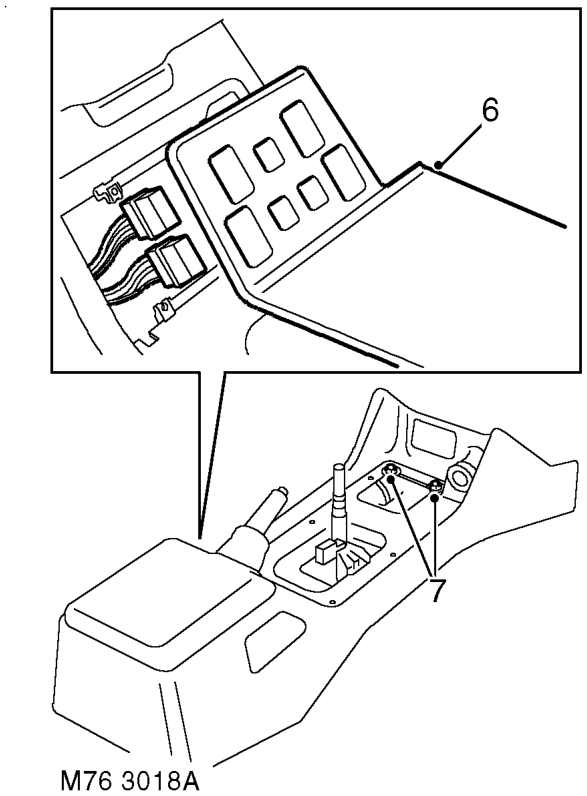

- Models with base trim: Remove 4 screws securing switch pack to centre console, disconnect multiplugs and remove switch pack.
- Models with veneer trim: Release veneered console cover and remove cigar lighter element. Disconnect multiplugs from switch pack and remove veneered console cover.
- Remove 2 bolts securing forward edge of console to transmission tunnel.
