Carpet - loadspace

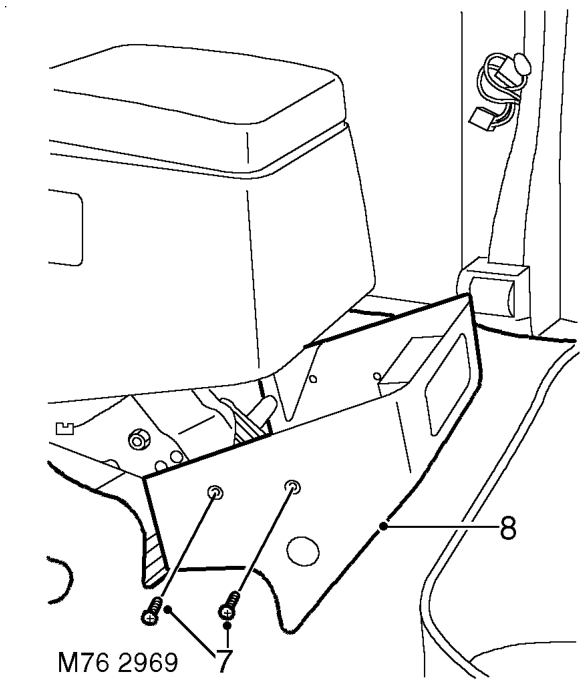

7. Remove 4 screws securing trim panel to rear of centre console.
8. Remove trim panel.
9. Position harnesses clear of rear carpet.
10. Remove rear carpet.

Refit

1. Position new rear carpet.
2. Fit front and rear carpet retainers to floor and secure with screws.
3. Fit finishers to front and rear carpet retainers
4. Position trim panel to rear of centre console and secure with screws.
5. Fit lower 'B' post trim panels. INTERIOR TRIM COMPONENTS, REPAIRS, Trim casing - lower - 'B' post.
6. Fit RH front seat to floor. SEATS, REPAIRS, Seat - front.
7. Models with premium ICE: Fit power amplifier. IN CAR ENTERTAINMENT, REPAIRS, Amplifier - power.

Carpet - loadspace

$% 76.49.04

Remove

1. Remove both rear seat belt lower fixings.
2. Models with third row seats: Remove both third row seats. SEATS, REPAIRS, Seat - third row.
3. Remove both loadspace side trim casings. INTERIOR TRIM COMPONENTS, REPAIRS, Trim casing - side - loadspace.

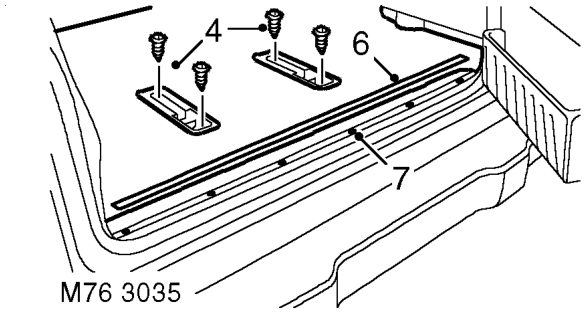

4. Models with third row seats: Remove 4 screws and remove both seat lower mounting escutcheons.
5. Recline rear seats fully forward.
6. Remove finisher from loadspace carpet retainer.
7. Remove 6 screws securing loadspace carpet retainer to floor and remove retainer.
8. Remove loadspace carpet.

Refit

1. Position loadspace carpet to floor.

2. Position loadspace carpet retainer to floor and secure with screws.

3. Fit finisher to loadspace carpet retainer

4. Return rear seats to their normal position.

5. Models with third row seats: Position both third row seats lower mounting escutcheons to floor and secure with screws.

6. Fit both loadspace side trim casings. INTERIOR TRIM COMPONENTS, REPAIRS, Trim casing - side - loadspace.

7. Models with third row seats: Fit both third row seats. SEATS, REPAIRS, Seat - third row.
8. Position both rear seat belt lower mountings and secure with bolts tightened to 32 Nm (24 lbf.ft).
