Radio cassette player

_REPAIRS

Radio cassette player

$% 86.50.03

Remove

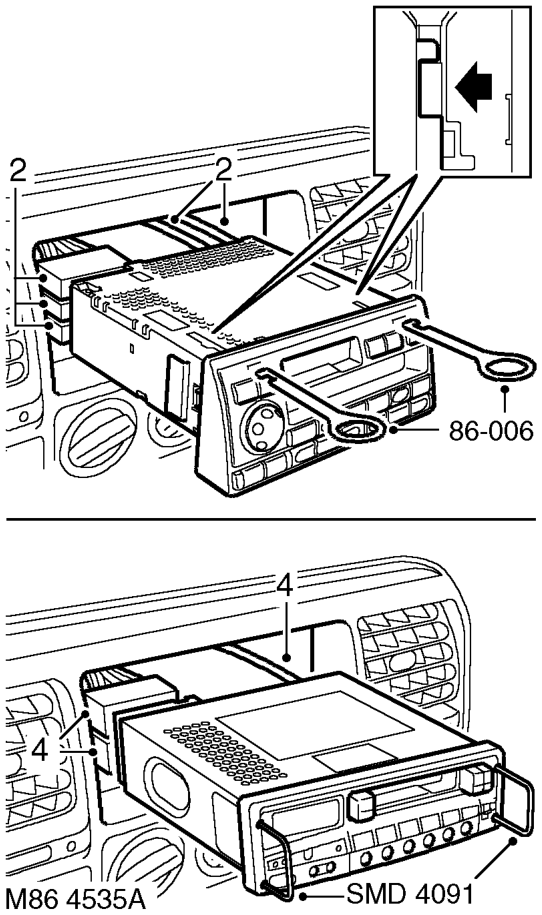

1. High line models:Fit tool 86-006, with cut-outs facing outwards, into slots at top of radio cassette player. Ensure that cut-outs locate correctly with retaining clips (arrowed), and pull radio cassette player from fascia.
2. High line models: Disconnect 3 multiplugs and 2 coax cables and remove radio cassette player.
3. Mid and low line models: Fit radio removal tools SMD 4091 to release retaining clips and pull radio cassette player from fascia.
4. Mid and low line models: Disconnect 2 multiplugs and coax cable and remove radio cassette player.

Refit

1. Position radio cassette player to fascia aperture and connect multiplugs and coax cable(s).
2. Slide radio into fascia until retaining clips engage.
3. Enter security code and check radio cassette player for correct operation.
