Land Rover Discovery II (UK)53 · In car entertainment
53 · General

Speaker - tail door CD autochanger

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs › Speaker - tail door CD autochanger
In car entertainmentSpeaker - tail door CD autochanger

Speaker - tail door CD autochanger

$% 86.50.42 $% 86.50.60

Remove Remove

  1. Remove tail door speaker trim casing. INTERIOR TRIM COMPONENTS, REPAIRS, Trim casing - tail door speaker.

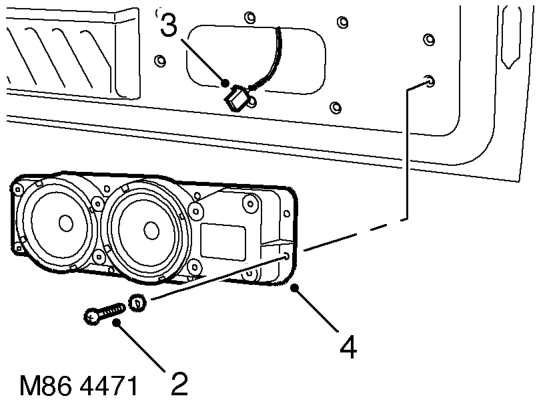

Remove remove – Remove tail door speaker trim casing.  INTERIOR TRIM COMPONENTS, REPAIRS, Trim casing - t
  1. Remove 8 screws securing tail door speaker to tail door trim casing.
  2. Disconnect tail door speaker multiplug.
  3. Remove tail door speaker.

Refit

  1. Position tail door speaker to tail door and connect multiplug.
  2. Fit screws securing tail door speaker to tail door trim casing.
  3. Fit tail door speaker trim casing. INTERIOR TRIM COMPONENTS, REPAIRS, Trim casing - tail door speaker.

Refit

  1. Remove RH front seat. SEATS, REPAIRS, Seat - front.

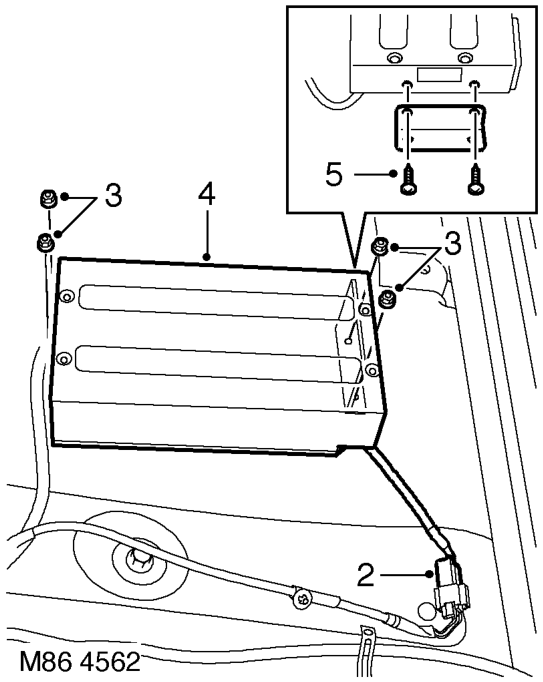

Remove remove – Remove RH front seat. SEATS, REPAIRS, Seat - front.
  1. Disconnect multiplug from CD autochanger.
  2. Remove 4 nuts securing CD autochanger to floor.
  3. Remove CD autochanger.

5. Remove 4 screws securing mounting brackets to CD autochanger and remove mounting brackets.

  1. Position mounting brackets to CD autochanger and secure with screws.
  2. Position CD autochanger to floor and secure with nuts.
  3. Connect multiplug to CD autochanger.
  4. Fit RH front seat. SEATS, REPAIRS, Seat - front.
