Restraint systemsMounting - seat belt - 'B' post

Mounting - seat belt - 'B' post

$% 76.73.26

Remove

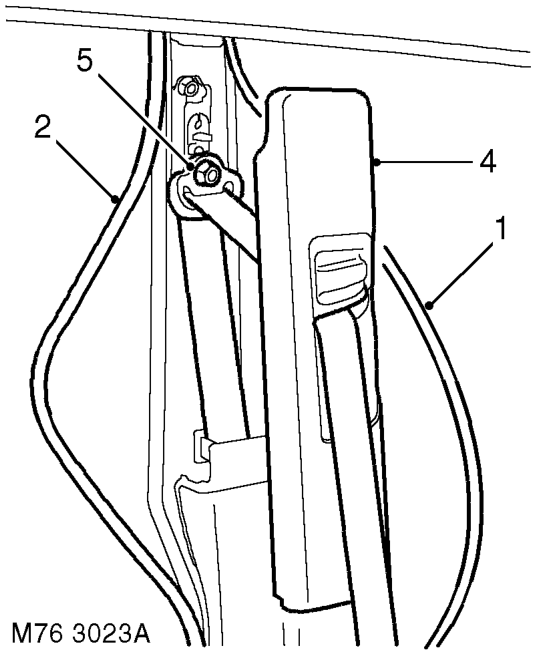

Mounting - seat belt - 'b' post – $% 76.73.26

Refit

  1. Release front door aperture seal from 'B' post.
  2. Release rear door aperture seal from 'B' post.
  3. Release clip securing upper 'B' post trim.
  4. Remove 'B' post upper trim.
  5. Remove nut securing seat belt upper anchorage to mounting.

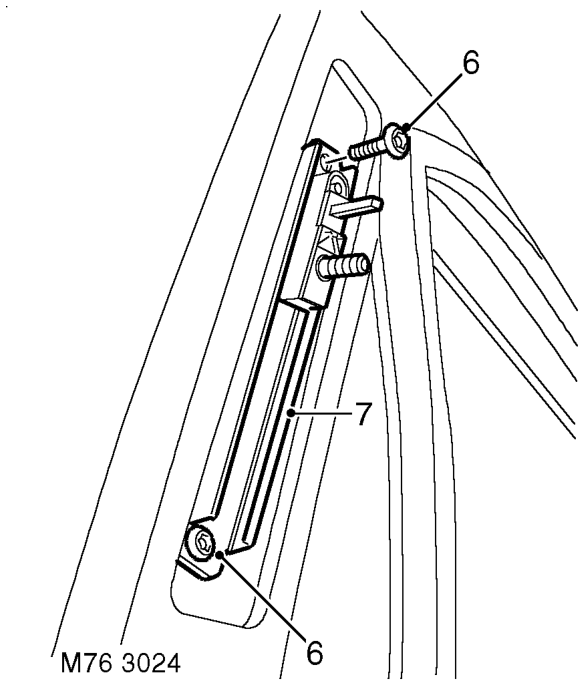

Mounting - seat belt - 'b' post – Remove nut securing seat belt upper anchorage to mounting.
  1. Remove 2 Torx bolts securing mounting to 'B' post.
  2. Remove mounting.
  3. Fit mounting to upper 'B' post and tighten Torx bolts to 22 Nm (16 lbf.ft).
  4. Fit seat belt upper anchorage to mounting and tighten nut to 32 Nm (24 lbf.ft).
  5. Secure trim casing to 'B' post with clip.
  6. Fit front and rear door aperture seals to 'B' post.
