Pre-tensioner - front seat belt Airbag module - drivers

Pre-tensioner - front seat belt Airbag module - drivers

$% 76.73.30 $% 76.74.01

WARNING: It is imperative that before any work WARNING: It is imperative that before any work is undertaken on the SRS system the appropriate is undertaken on the SRS system the appropriate information is read thoroughly. information is read thoroughly.

WARNING: Always disconnect both battery leads WARNING: Always disconnect both battery leads before beginning work on the SRS system. before beginning work on the SRS system. Disconnect the negative battery lead first. Never Disconnect the negative battery lead first. Never reverse connect the battery. reverse connect the battery.

Remove Remove

1. Remove the key from the starter switch. Disconnect both battery leads, negative lead first. Wait ten minutes before starting work.
2. Remove front seat. SEATS, REPAIRS, Seat - front.

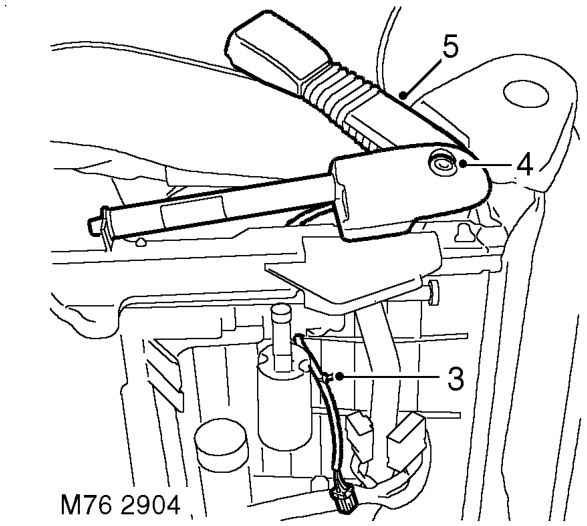

3. Release cable tie securing pre-tensioner harness to seat.
4. Remove Torx screw securing pre-tensioner to seat.
5. Remove pre-tensioner.

WARNING: Store the airbag module or seat belt pre-tensioner in a designated storage area. If there is no designated storage area available, store in the locked luggage compartment/loadspace of the vehicle and inform the workshop supervisor.

Refit

1. Fit pre-tensioner to seat and tighten Torx bolt to 32 Nm (24 lbf.ft).
2. Secure harness to seat with new cable tie.
3. Fit front seat. SEATS, REPAIRS, Seat - front.
4. Connect battery leads, earth lead last.
1. Remove the key from the starter switch. Disconnect both battery leads, negative lead first. Wait ten minutes before starting work.

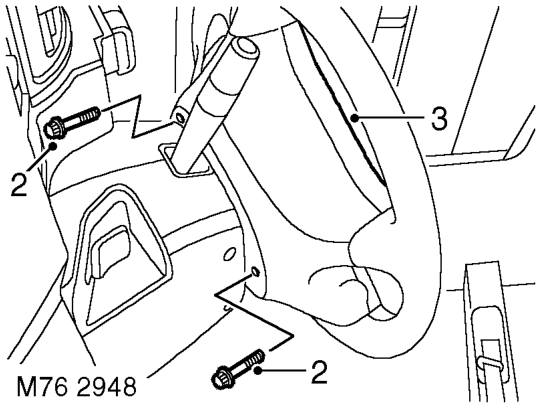

2. Remove 2 Torx bolts securing airbag module to steering wheel.
3. Release airbag module from steering wheel.

CAUTION: Do not allow the airbag module to hang by the airbag harness.

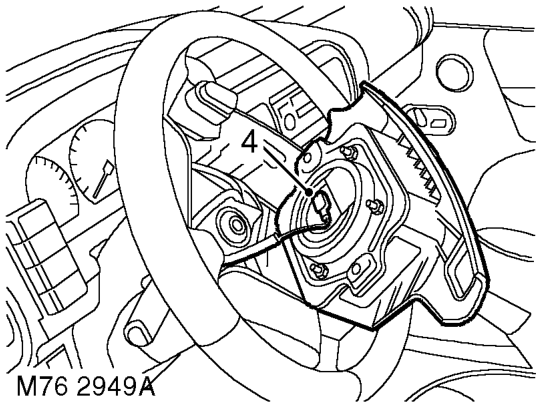

4. Disconnect multiplug from airbag module.
