Seat belt - rear - side

$% 76.73.23

Remove

  1. Remove 'D' post trim casing. INTERIOR TRIM COMPONENTS, REPAIRS, Trim casing - 'D' post.
  2. Remove loadspace side trim casing. INTERIOR TRIM COMPONENTS, REPAIRS, Trim casing - side - loadspace.

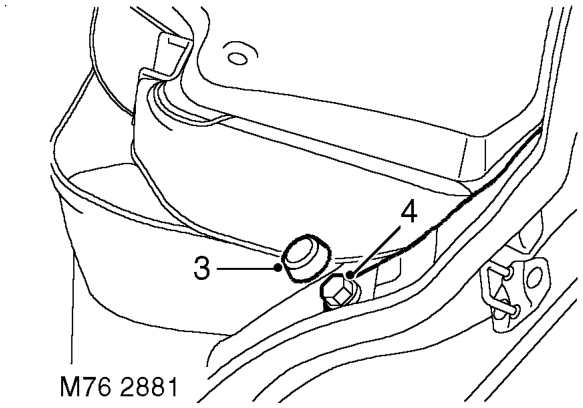

Seat belt - rear - side – Remove loadspace side trim casing.  INTERIOR TRIM COMPONENTS, REPAIRS, Trim casing - side
  1. Remove cap from seat belt lower anchorage bolt.
  2. Remove lower anchorage bolt.

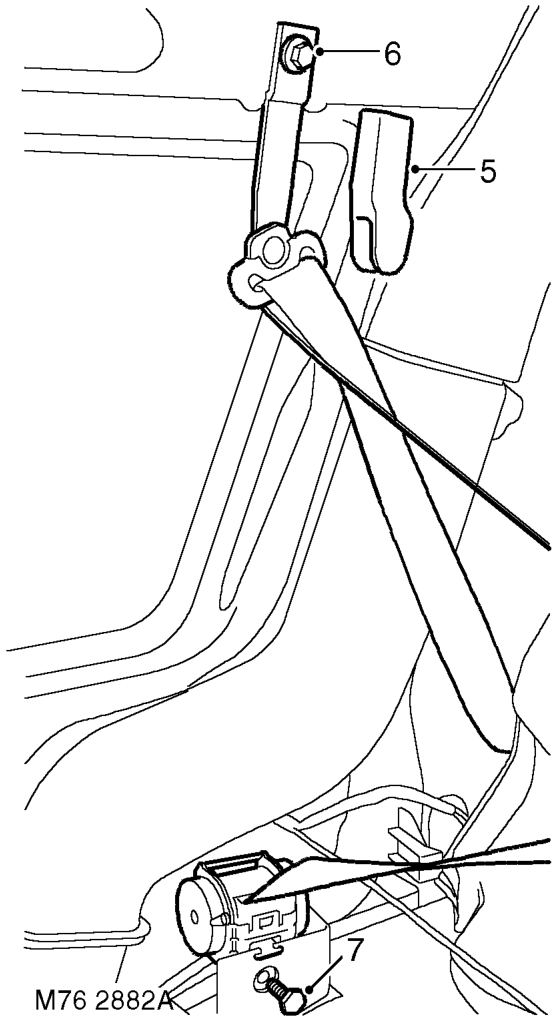

Seat belt - rear - side – Remove lower anchorage bolt.
  1. Remove cover from seat belt upper anchorage bolt.
  2. Remove upper anchorage bolt.
  3. Remove bolt securing seat belt reel to body.
  4. Remove seat belt.

Refit

  1. Fit seat belt reel to body and tighten bolt to 32 Nm (24 lbf.ft).
  2. Fit seat belt upper anchorage to body and tighten bolt to 50 Nm (37 lbf.ft).
  3. Fit cover to upper anchorage bolt.
  4. Fit seat belt lower anchorage to body and tighten bolt to 32 Nm (24 lbf.ft).
  5. Fit cap to lower anchorage bolt.
  6. Fit loadspace side trim casing. INTERIOR TRIM COMPONENTS, REPAIRS, Trim casing - side - loadspace.
  7. Fit 'D' post trim casing. INTERIOR TRIM COMPONENTS, REPAIRS, Trim casing - 'D' post.
