Seat belt - front (page 2 of 2)

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs
Restraint systemsSeat belt - front · page 2 of 2
Diagram

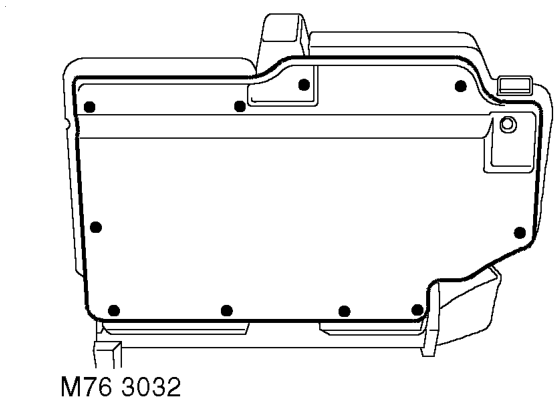

  1. Remove 11 clips securing seat back finisher to RH rear seats.
  2. Remove seat back finisher.

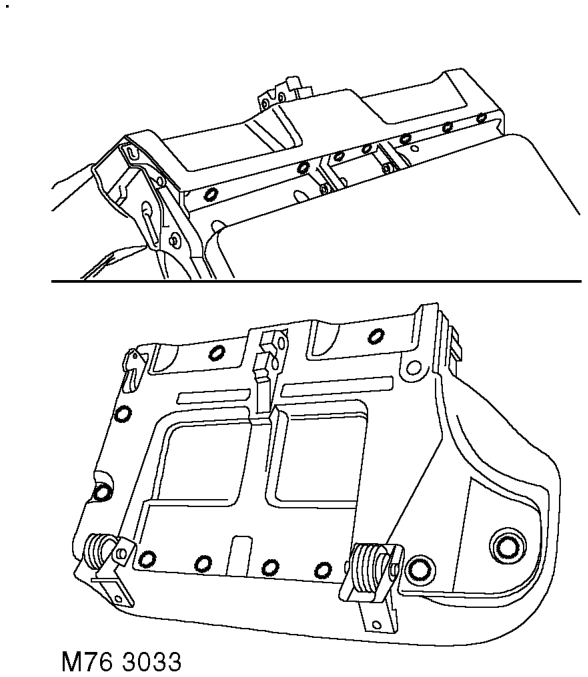

Remove seat back finisher.
  1. Remove bolt securing seat belt lower
  2. Remove 2 screws securing guide cover to RH
  3. Remove guide cover.
  4. Remove bolt securing seat belt reel to frame of
  5. Remove seat belt.

Refit

  1. Remove 15 clips securing seat base finisher to RH rear seats.
  2. Remove seat base finisher.

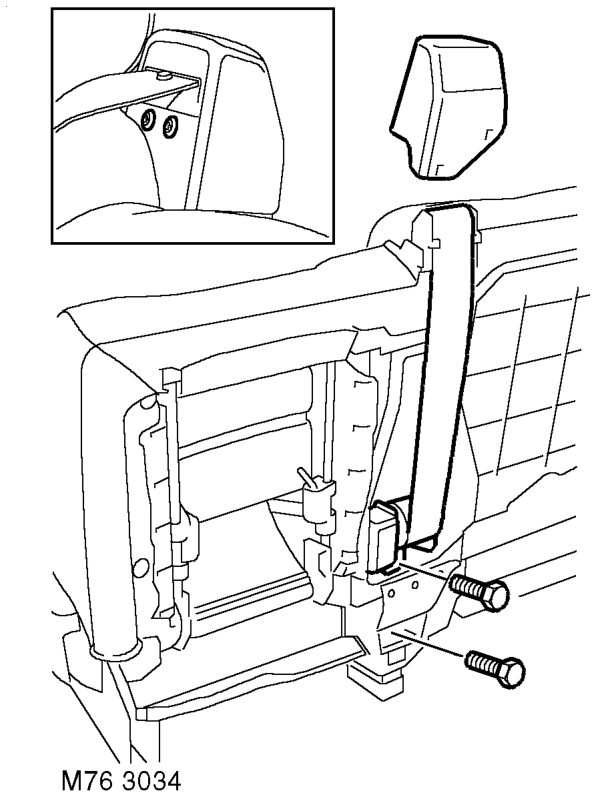

Remove seat base finisher.

anchorage to frame of RH rear seats.

rear seats

RH rear seats.

  1. Fit seat belt reel and tighten bolt to 32 Nm (24 lbf.ft).
  2. Position seat belt through guide on top of RH rear seats.
  3. Fit seat belt lower anchorage to frame of seats and tighten bolt to 32 Nm (24 lbf.ft).
  4. Position guide cover to RH rear seats and secure with screws.
  5. Position seat base finisher to RH rear seats and secure with clips.
  6. Position seat back finisher to RH rear seats and secure with clips.
  7. Position RH rear seats and secure rear mounting brackets to floor with Torx bolts tightened to 45 Nm (33 lbf.ft).
  8. Put RH rear seats in upright position and secure front mounting brackets to floor with Torx bolts tightened to 45 Nm (33 lbf.ft).
  9. Position front carpet.
