Restraint systemsAirbag deployment tool - self test

Airbag deployment tool - self test

Airbag deployment tool - self test

$% 76.74.99

Test

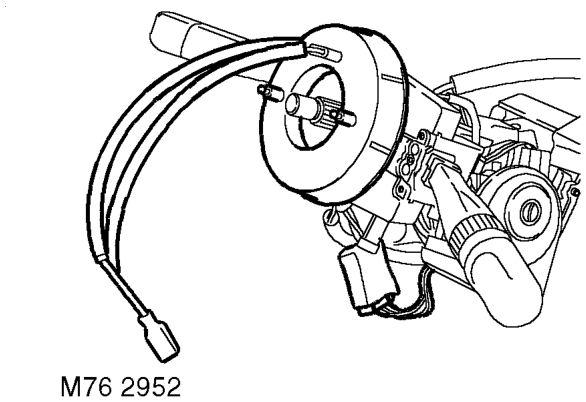

  1. Release rotary coupler multiplug from bracket and disconnect from harness.
  2. Disconnect rotary coupler multiplug from harness.
  3. Remove rotary coupler.

Refit

  1. Fit rotary coupler to steering column and connect multiplug to harness.
  2. Connect rotary coupler multiplug to harness and secure to bracket.
  3. Fit steering column nacelle. STEERING, REPAIRS, Nacelle - steering column.
  4. Fit steering wheel. STEERING, REPAIRS, Steering wheel.
  5. Self test now complete.
Airbag deployment tool - self test – Self test now complete.

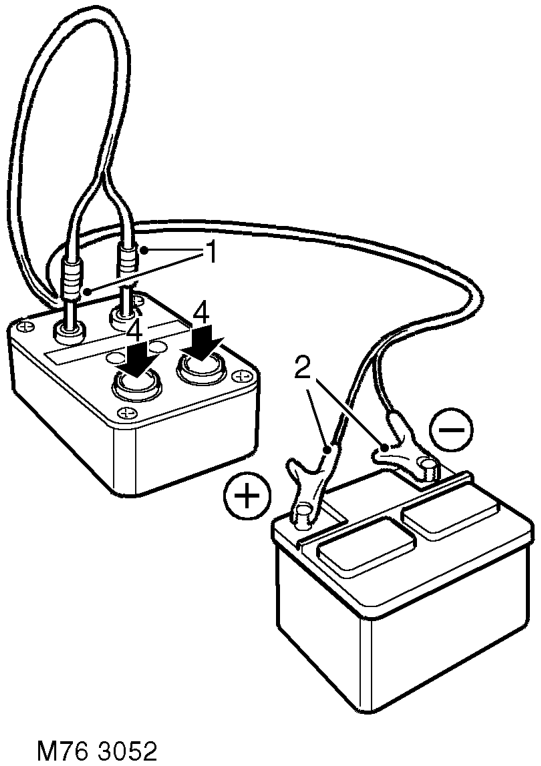

  1. Insert BLUE and YELLOW connectors of tool lead into corresponding sockets on face of tool.
  2. Connect crocodile clips of second tool lead to battery, RED to positive and BLACK to negative.
  3. RED "READY" light should illuminate.
  4. Press and hold both operating buttons.
  5. GREEN "DEFECTIVE" light should illuminate.
  6. Release both operating buttons.
  7. RED "READY" light should illuminate.
  8. Disconnect tool from battery.
  9. Disconnect blue and yellow connectors from tool face sockets.
