Nacelle - steering column

Nacelle - steering column

$% 57.40.29

Remove

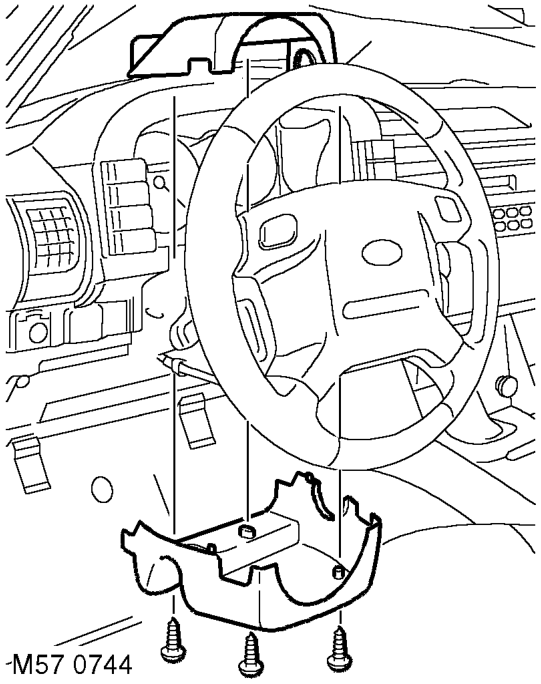

1. Open fascia lower access panel.

2. Remove 3 screws securing steering column nacelle halves together.
3. Release clips securing nacelle together and remove from steering column.

Refit

1. Position nacelle to steering column and secure with clips and screws.
2. Close fascia lower access panel.

Drop arm - steering box

$% 57.50.14

Remove

1. Remove steering box. l For V8 models: STEERING, REPAIRS, Power steering box - V8. l For LHD diesel models: STEERING, REPAIRS, Power steering box - LHD - diesel. l For RHD diesel models: STEERING, REPAIRS, Steering box - RHD - diesel.

2. Secure steering box in vice.
3. Release drop arm nut lock washer.
4. Loosen but do not remove nut securing drop arm.

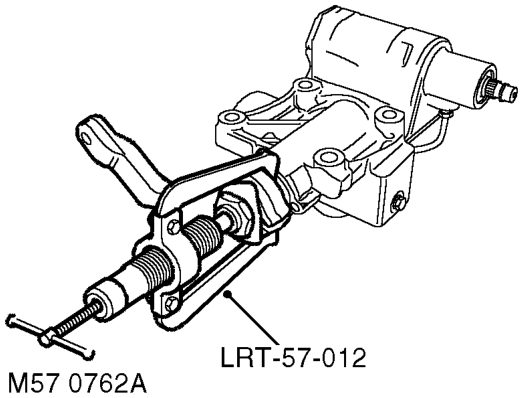

5. Using LRT-57-012 release drop arm.
6. Remove nut and lock washer.
7. Remove drop arm.

Refit

1. Clean drop arm and steering box splines.
2. Ensure steering box is in the central position. Align and fit drop arm to output shaft and secure with lock washer and nut. Tighten nut to 240 Nm (177 lbf.ft).
3. Secure lock washer to drop arm nut.
4. Fit steering box. l For V8 models: STEERING, REPAIRS, Power steering box - V8. l For LHD diesel models: STEERING, REPAIRS, Power steering box - LHD - diesel. l For RHD diesel models: STEERING, REPAIRS, Steering box - RHD - diesel.
