Shaft - intermediate and universal joint - (page 3 of 3)

Refit

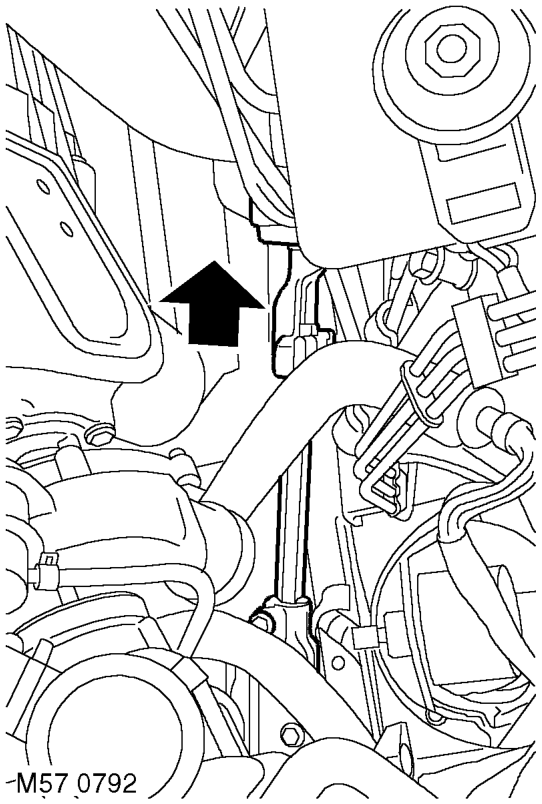

6. Intermediate shaft: Slide the intermediate shaft upwards, release from the universal joint and remove intermediate shaft from the steering column.
7. Universal joint: Slide the intermediate shaft upwards, release from the universal joint and remove universal joint from the steering box.
1. Clean and inspect splines for wear and damage.
2. Intermediate shaft: Locate intermediate shaft on steering column and engage with universal joint. Ensure splines are fully engaged and bolt holes aligned.
3. Universal joint: Locate universal joint on steering box and engage in intermediate shaft. Ensure splines are fully engaged and bolt holes aligned.
4. Fit bolts securing intermediate shaft to universal joint and tighten to 25 Nm (18 lbf.ft).
5. Intermediate shaft: Fit bolts securing intermediate shaft to steering column and tighten to 25 Nm (18 lbf.ft).
6. Universal joint: Fit bolts securing universal joint to steering box and tighten to 25 Nm (18 lbf.ft).
7. LHD diesel: Connect hose to turbocharger and intercooler and secure the clips.
8. Fit ignition key, remove steering box centralising bolt and check that steering wheel is in the straight ahead position.
