Repairs › Power steering box - LHD - diesel
SteeringPower steering box - LHD - diesel · page 1 of 4

Power steering box - LHD - diesel

$% 57.10.01

Remove

  1. Remove battery cover.
  2. Disconnect battery earth lead.
  3. Drain cooling system. COOLING SYSTEM - Td5, ADJUSTMENTS, Drain and refill.
  4. Raise front of vehicle.

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

  1. Remove LH front road wheel.
  2. Ensure steering wheel is centralised, remove key from steering lock and engage column lock.

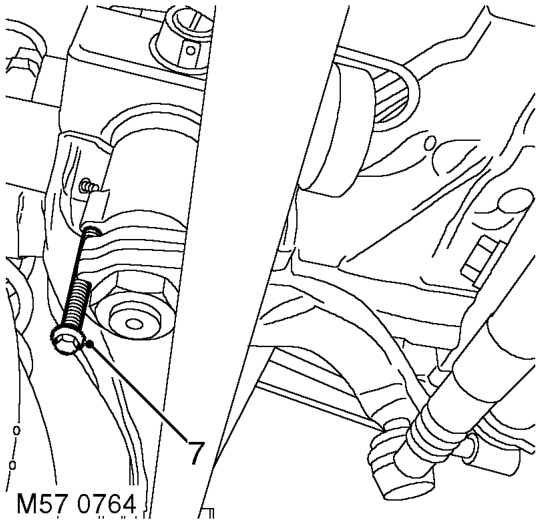

Power steering box - lhd - diesel – Ensure steering wheel is centralised, remove key from steering lock and engage column lock
  1. Fit centralising bolt to steering box.

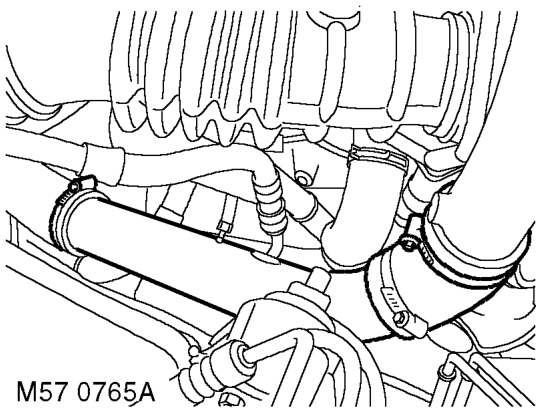

Power steering box - lhd - diesel – Fit centralising bolt to steering box.
  1. Push intermediate shaft upwards, release and
  2. Loosen 2 clips securing intercooler to turbo 11. Position container below PAS pipes to catch hose. Remove hose.

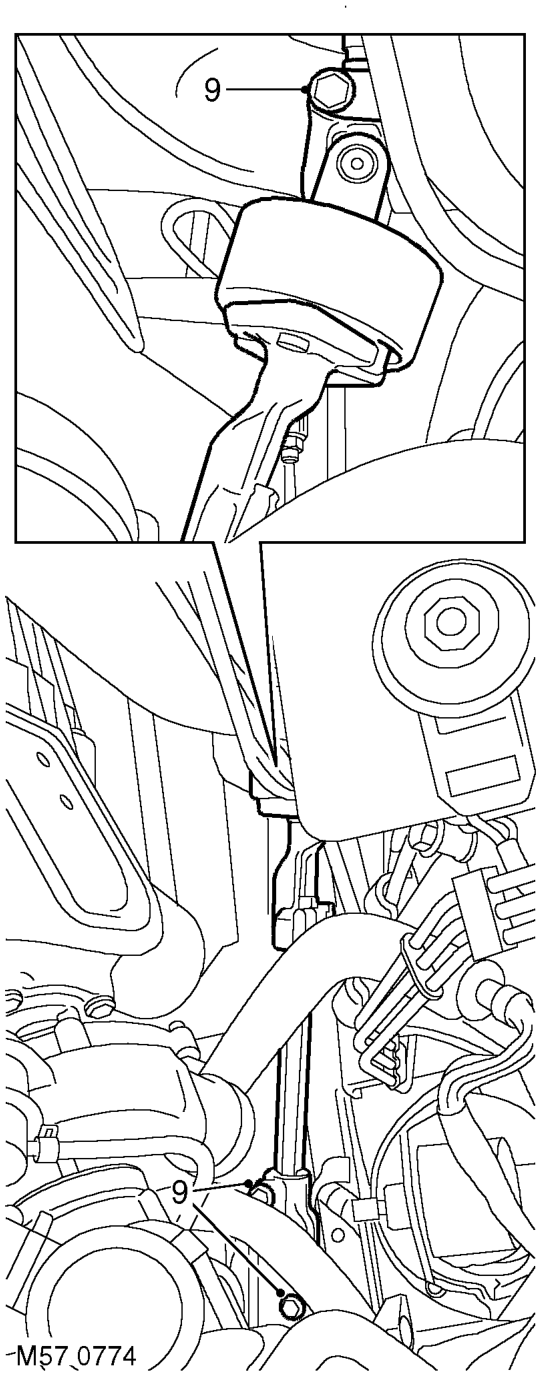

Power steering box - lhd - diesel – Loosen 2 clips securing intercooler to turbo 11. Position container below PAS pipes to cat
  1. Remove 3 bolts securing intermediate shaft and universal joint.

remove universal joint.

CAUTION: Do not turn the steering wheel with the intermediate shaft or universal joint disconnected as damage to the rotary coupler and the steering wheel switches may occur.

fluid spillage.
