Land Rover Discovery II (UK)29 · Steering
29 · Steering & suspension

Seal - output shaft - steering box

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs › Seal - output shaft - steering box
SteeringSeal - output shaft - steering box

Seal - output shaft - steering box

$% 57.10.17

Remove

  1. Remove steering box: l For V8 models: STEERING, REPAIRS, Power steering box - V8. l For LHD diesel models: STEERING, REPAIRS, Power steering box - LHD - diesel. l For RHD diesel models: STEERING, REPAIRS, Steering box - RHD - diesel.
  2. Secure steering box in vice.
  3. Release lock washer from drop arm nut.
  4. Loosen but do not remove nut securing drop arm.
  5. Remove 4 bolts securing output shaft assembly
Seal - output shaft - steering box – Remove 4 bolts securing output shaft assembly

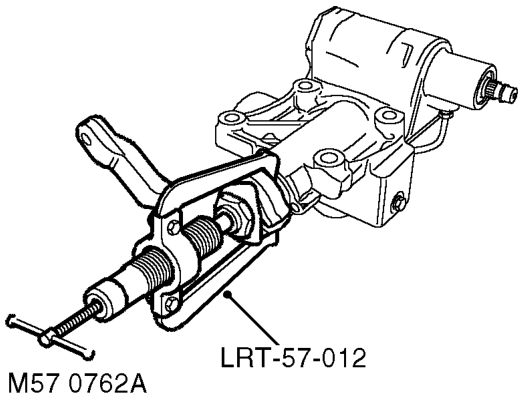

  1. Using LRT-57-012, release drop arm.
  2. Remove nut and discard lock washer.
  3. Remove drop arm.

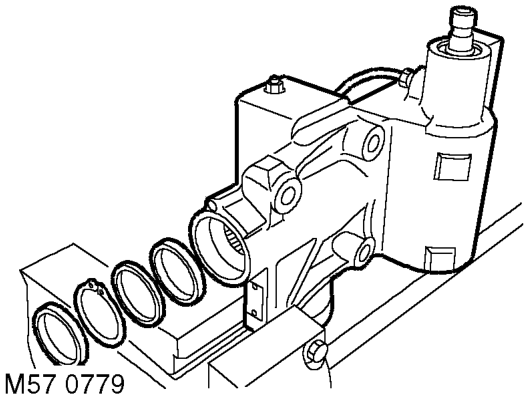

  4. Remove seal shield and circlip.
  5. Remove seal and spacer.
Seal - output shaft - steering box – Remove seal and spacer.

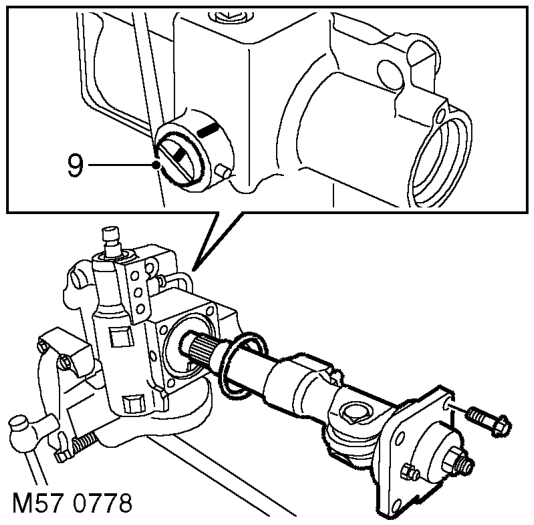

  1. Mark position of rack adjuster.
  2. Remove Allen screw securing rack adjuster and loosen adjuster one turn.

and remove output shaft assembly. Remove and discard 'O' ring from end cover.

Seal - output shaft - steering box – and remove output shaft assembly. Remove and discard 'O' ring from end cover.
