Seal - input shaft - steering box

10. Lubricate new 'O' rings for PAS pipes with clean PAS fluid.
11. Fit 'O' rings to PAS pipes and position pipes in steering box. Fit PAS pipe bracket and tighten bolt to 22 Nm 16 lbf.ft).
12. Ensure steering wheel is centralised. Fit universal joint between steering box and intermediate shaft and tighten bolts to 25 Nm (18 lbf.ft).
13. Remove centralising bolt from steering box.
14. Fit road wheel(s) and tighten nuts to 140 Nm (103 lbf.ft).
15. Remove stand(s) and lower vehicle.
16. Connect battery earth lead.
17. Fit battery cover.
18. Refill cooling system. COOLING SYSTEM - Td5, ADJUSTMENTS, Drain and refill.
19. Bleed PAS system. STEERING, ADJUSTMENTS, Hydraulic system - bleed.
20. Centralise steering linkage STEERING, ADJUSTMENTS, Steering linkage - centralise.

Seal - input shaft - steering box

$% 57.10.16

Remove

1. Remove steering box: l For V8 models: STEERING, REPAIRS, Power steering box - V8. l For LHD diesel models: STEERING, REPAIRS, Power steering box - LHD - diesel. l For RHD diesel models: STEERING, REPAIRS, Steering box - RHD - diesel.
2. Secure steering box in vice.

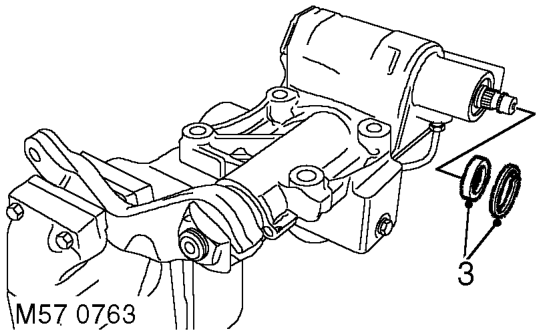

3. Remove circlip and extract oil seal from steering box. Take care not to damage surface of the shaft.

Refit

1. Clean oil seal recess and input shaft.
2. Lubricate new seal with clean PAS fluid.
3. Fit seal using LRT-57-503.
4. Fit circlip.
5. Fit steering box. l For V8 models: STEERING, REPAIRS, Power steering box - V8. l For LHD diesel models: STEERING, REPAIRS, Power steering box - LHD - diesel. l For RHD diesel models: STEERING, REPAIRS, Steering box - RHD - diesel.
