Steering box - RHD - diesel (page 3 of 3)

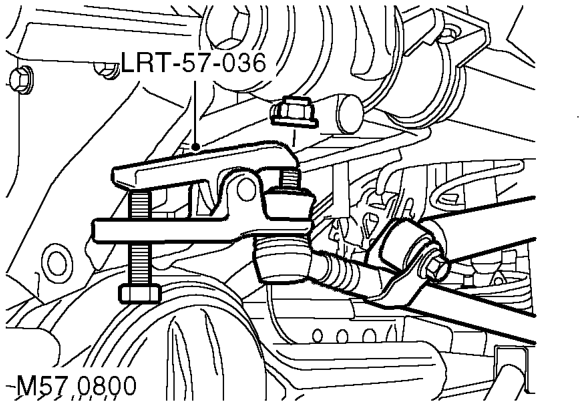

17. Remove nut securing drag link to drop arm. Using LRT-57-036, break taper joint and release drag link.

19. Models with ACE:

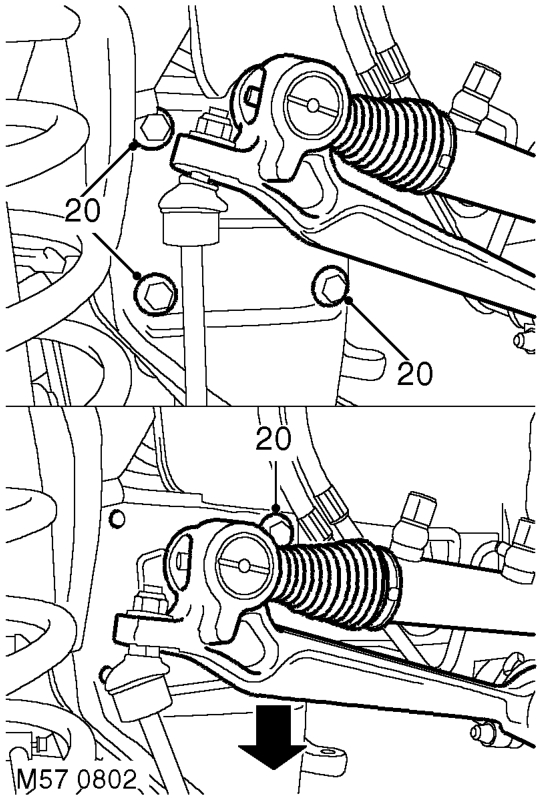

20. With assistance, remove 4 bolts securing
21. Remove centralising bolt from steering box.

Refit

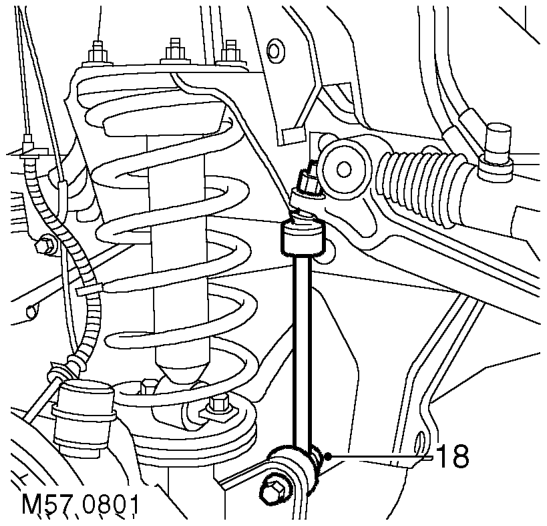

18. Models with ACE: Remove nut securing antiroll bar link lower ball joint and release joint.

Position ACE control arms to access steering box bolts.

steering box and remove steering box.

1. Fit centralising bolt to steering box.
2. With assistance, position steering box to chassis, fit bolts and tighten to 90 Nm (66 lbf.ft).
3. Models with ACE: Ensure washer is in place on lower ball joint of anti-roll bar link, then connect lower ball joint to axle and tighten nut to 100 Nm (74 lbf.ft).
4. Position drag link, fit nut and tighten to 80 Nm (59 lbf.ft).
5. Position Panhard rod, fit bolt and nut and tighten to 230 Nm (170 lbf.ft).
6. Position coolant rail and secure with clips and bolt.
7. Fit coolant hoses and secure with clips.
8. Models with ACE: Fit and tighten bolt securing ACE pipes to chassis.
9. Clean PAS pipes ends and 'O' ring recess.
