29 · Steering & suspension

Power steering box - LHD - diesel (page 2 of 4)

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs
SteeringPower steering box - LHD - diesel · page 2 of 4
Diagram

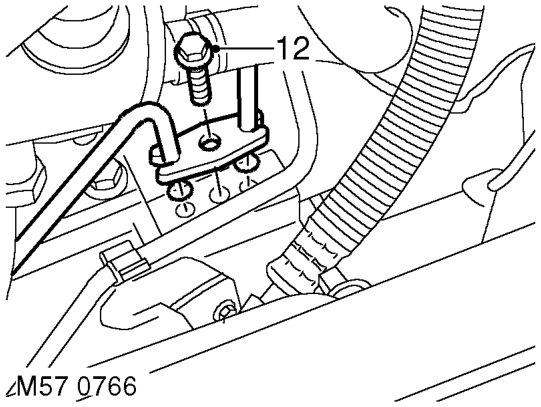

  1. Remove bolt securing PAS pipe bracket to steering box, release pipes and discard 'O' rings.

CAUTION: Always fit plugs to open connections to prevent contamination.

Remove bolt securing PAS pipe bracket to steering box, release pipes and discard 'O' rings

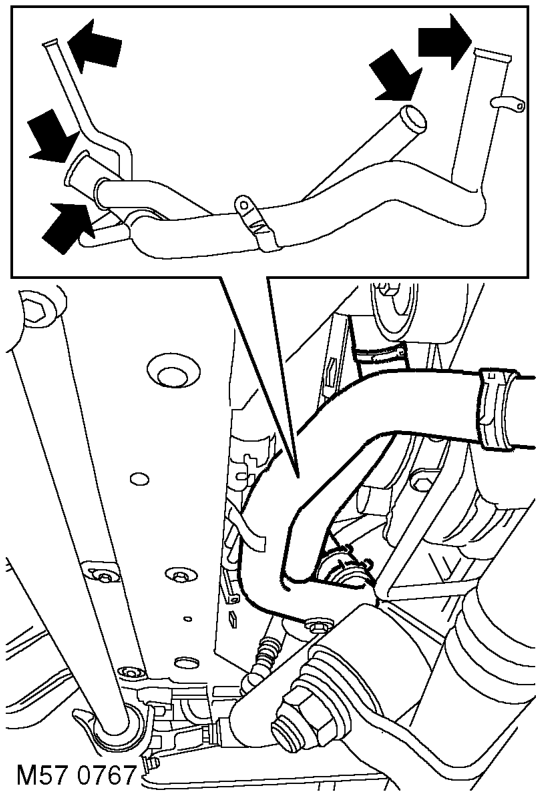

  1. Release 5 clips securing hoses to coolant rail and disconnect hoses.
Release 5 clips securing hoses to coolant rail and disconnect hoses.

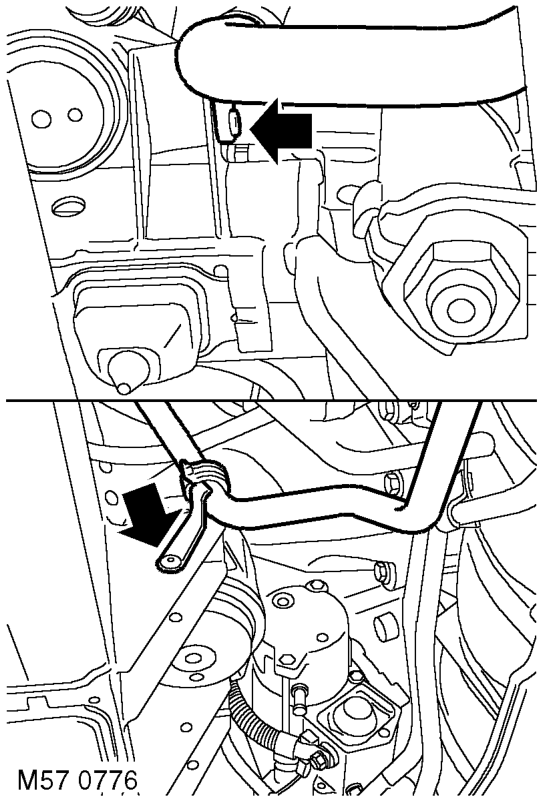

  1. Models with ACE: Remove bolt securing ACE pipes to chassis to gain access to coolant rail bolt.

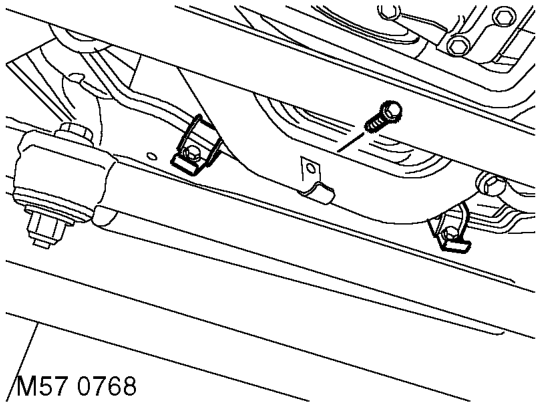

  2. Remove bolt securing coolant rail.
Remove bolt securing coolant rail.
  1. Release 2 clips securing coolant rails and remove coolant rail from vehicle.
